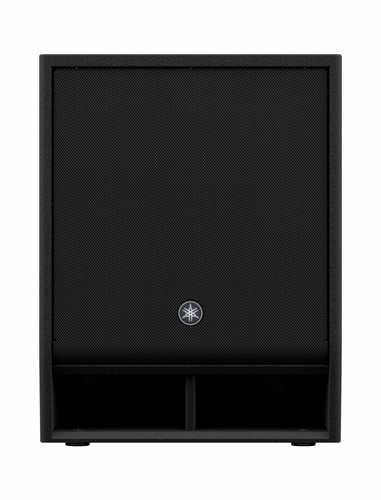

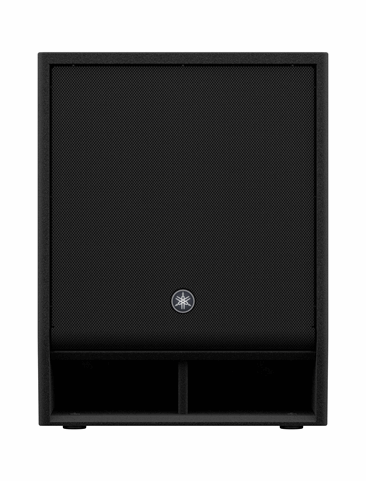

Yamaha DXS15-D XLF Dante Equipped Active Subwoofer
Image Gallery
RRP £2,475.60 Save £706.60
£1,769.00
In Stock
2 AvailableOrder now for FREE Delivery on Tuesday
Includes Extended Exchange & 3-Year Warranty
Frequently Bought Together
Manufacturer's ID: CDXS15XLFDUK
What we say:
At A Glance:
Yamaha's Professional Audio products are some of the best on the market and the DXS15-D Dante Equipped Subwoofer is no exception. Its robust construction and highly efficient components come together to produce a crystal clear sound that is highly effective across a number of applications. The DXS15-D makes a powerful addition to professional systems especially those running audio via Dante.
Features We Love:
1600W Class-D Power
Extremely efficient and very reliable, the 1600W Class-D Power is a mighty beast. It delivers a very respectable 133dB SPL which we think you'll agree is more than enough for most live scenarios!
Onboard LCD Screen
Thanks to the LCD screen you can quickly access presets and other DSP functions. Make changes to parameters accurately, even when in low-light venue environments.
Dante Equipped
This version of the DXS15 comes Dante (Digital Audio Network Through Ethernet) equipped! This means you can digitally connect other Dante devices such as Yamaha consoles for smart system integration. This opens up a whole range of routing and system configuration options without the need for heavy multicore cables.
Highlights:
- Plenty of power that gives you a controllable low end
- Custom-designed transducers for a consistently great sound
- Especially great when paired with another Dante speakers
Specification
| Speaker type | Powered Subwoofer, bass-reflex | |
| Frequency range (-10dB) | 33Hz - 150Hz | |
| LF Components | 15" Cone, 4" Voice Coil, Ferrite magnet | |
| Sampling frequency rate | 96kHz and FIR Filter | |
| A/D D/A Converters | 96kHz AD/DA | |
| Maximum output level (1m; on axis) | 136dB SPL *1 | |
| SRC | Yes | |
| Power rating | ||
| Dynamic | 1600W *2 | |
| Burst (20ms) | 1300W | |
| Continuous | 1200W | |

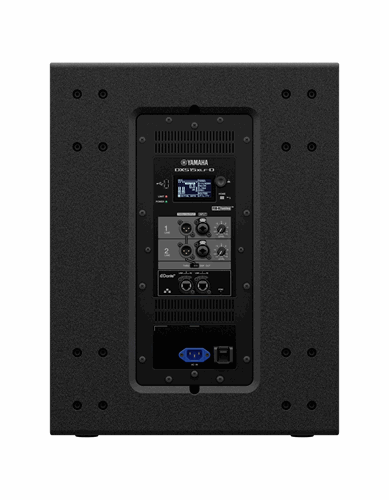

| I/O Connectors | ||
| Analog I/O | Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT | |
| Digital I/O | Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T | |
| Others | USB2.0 Host 5V 500mA for USB memory DATA storage/load | |
| AC | IEC AC inlet x1 (V-Lock) | |
| Amplifier class | Class-D | |
| Cooling | Fan cooling, Variable speeds | |
| Power consumption | 40W (Idle), 180W (1/8) | |
| Handle | Aluminium die-cast, Side x2 | |
| Width | 450 mm (17.7") | |
| Height | 587 mm (23.1") (with rubber feet) | |
| Depth | 600 mm (23.6") | |
| Net weight | 40.0kg (88.2lbs) | |
| Options | Cover: SPCVR-DXS15X, Caster: SPW-1 | |
| Others | ||
| Pole socket | Φ35 mm (depth 80mm), M20 Threaded (depth 25mm) |
