Manufacturer's ID: CDZR12DUK

What we say:

At A Glance:

Yamaha's Professional Audio products are some of the best on the market and the DZR12-D Dante Equipped PA Speaker is no exception. Its robust construction and highly efficient components come together to produce a crystal clear sound that is highly effective across a number of applications. Whether used as part of a main PA system or a stage monitoring system, it is a great choice for those who care about performance and sound delivery.

Features We Love:

2000W Class-D Power

Extremely efficient and very reliable, the 2000W Class-D Power is a mighty beast. It delivers a very respectable 139dB SPL which we think you'll agree is more than enough for most live scenarios!

Onboard LCD Screen

Thanks to the LCD screen you can quickly access presets and other DSP functions. Make changes to parameters accurately, even when in low-light venue environments.

Dante Equipped

This version of the DZR12 comes Dante (Digital Audio Network Through Ethernet) equipped! This means you can digitally connect other Dante devices such as Yamaha consoles for smart system integration. This opens up a whole range of routing and system configuration options without the need for heavy multicore cables.

Highlights:

  • Plenty of power with a lot of clarity
  • Custom-designed transducers for a consistently great sound
  • Especially great when paired with another DZR12-D

Specification

Speaker type 2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency range (-10dB) 39Hz - 20kHz
Coverage area H90゚ x V60゚ (Rotatable)

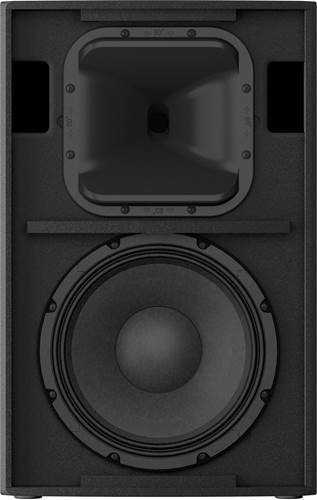

LF Components 12" Cone, 3" Voice Coil, Neodymium magnet
HF Components 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover 1.8kHz (FIR-X)
Sampling frequency rate 96kHz and FIR Filter
A/D D/A Converters 96kHz AD/DA
Maximum output level (1m; on axis) 139dB SPL *1
SRC Yes

Power rating
Dynamic 2000W (LF: 1000W, MF/HF: 1000W) *2
Burst (20ms) 1100W (LF: 1000W, MF/HF: 100W)
Continuous 950W (LF: 850W, MF/HF: 100W)

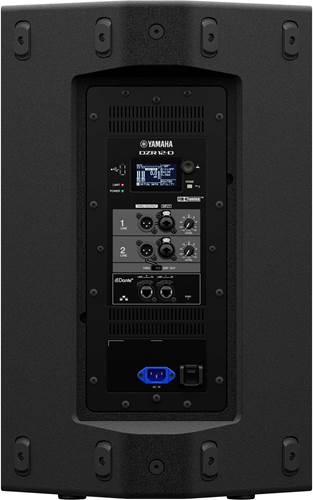

I/O Connectors
Analog I/O Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
Digital I/O Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
Others USB2.0 Host 5V 500mA for USB memory DATA storage/load
AC IEC AC inlet x1 (V-Lock)
Amplifier class Class-D
Cooling Fan cooling, Variable speeds
Power consumption 45W (Idle), 150W (1/8)
Handle Aluminium die-cast, Side x2
Rigging M10 x12
Width 410 mm (16.1")
Height 646 mm (25.4") (with rubber feet)
Depth 394 mm (15.5")
Net weight 21.4kg (47.2lbs)
Options U-bracket: UB-DZR12H/V, Cover: SPCVR-DZR12
Others Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black/White

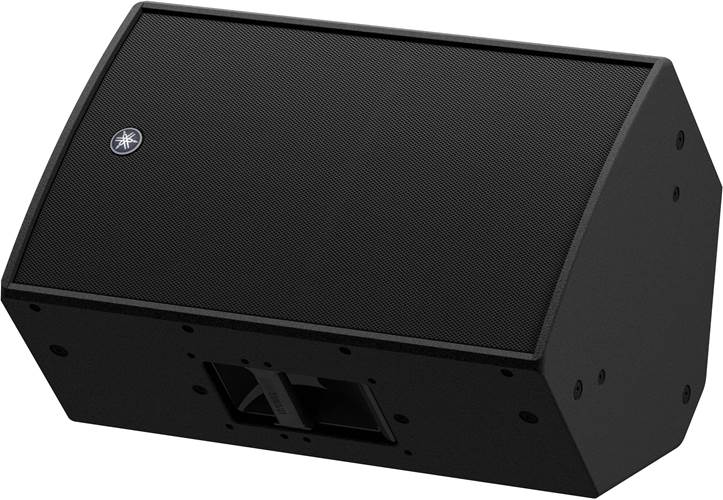

Floor Monitor Angle 50° Symmetrical
Pole socket Φ35 mm x2 (0° or -7°)
