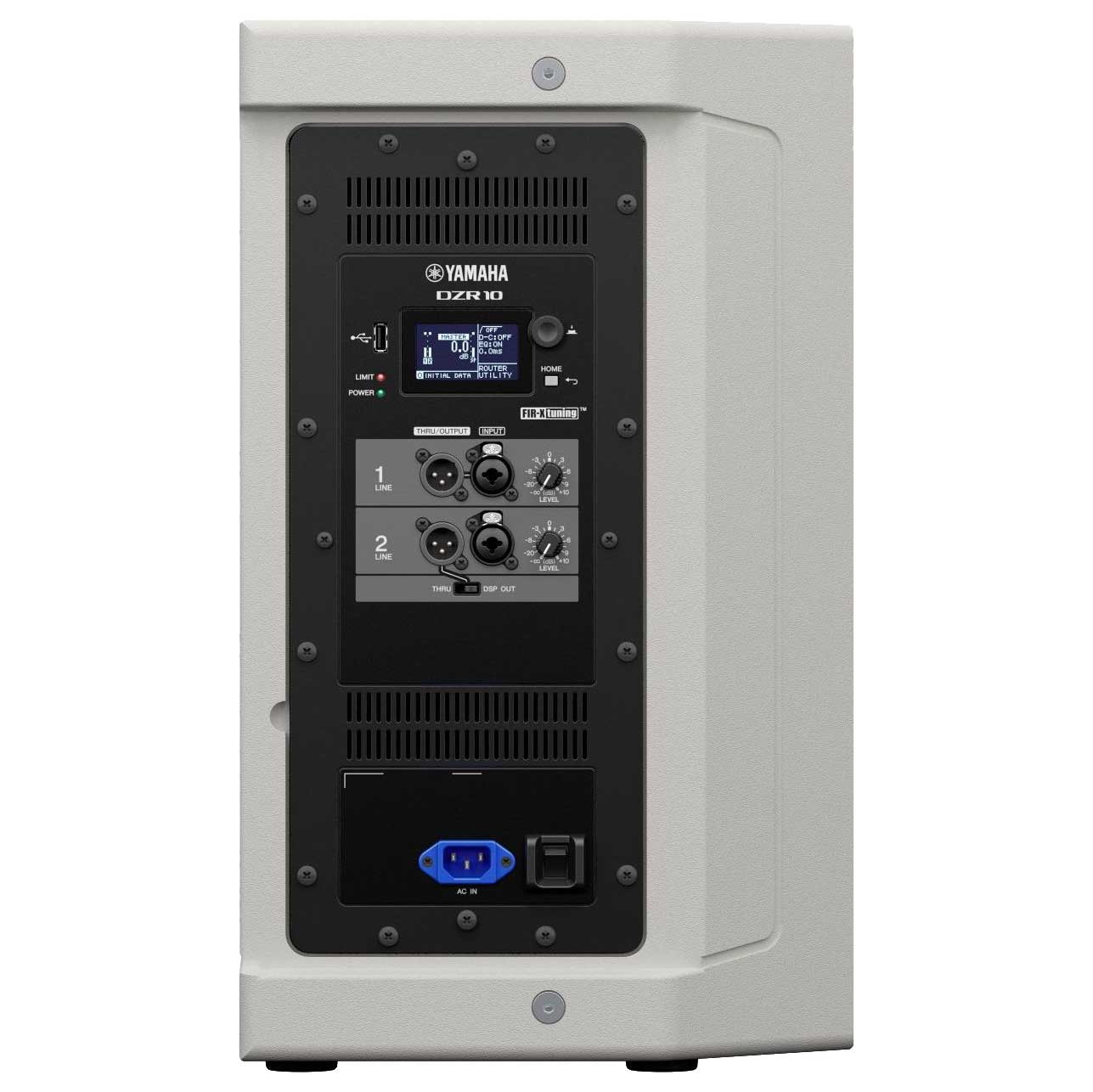

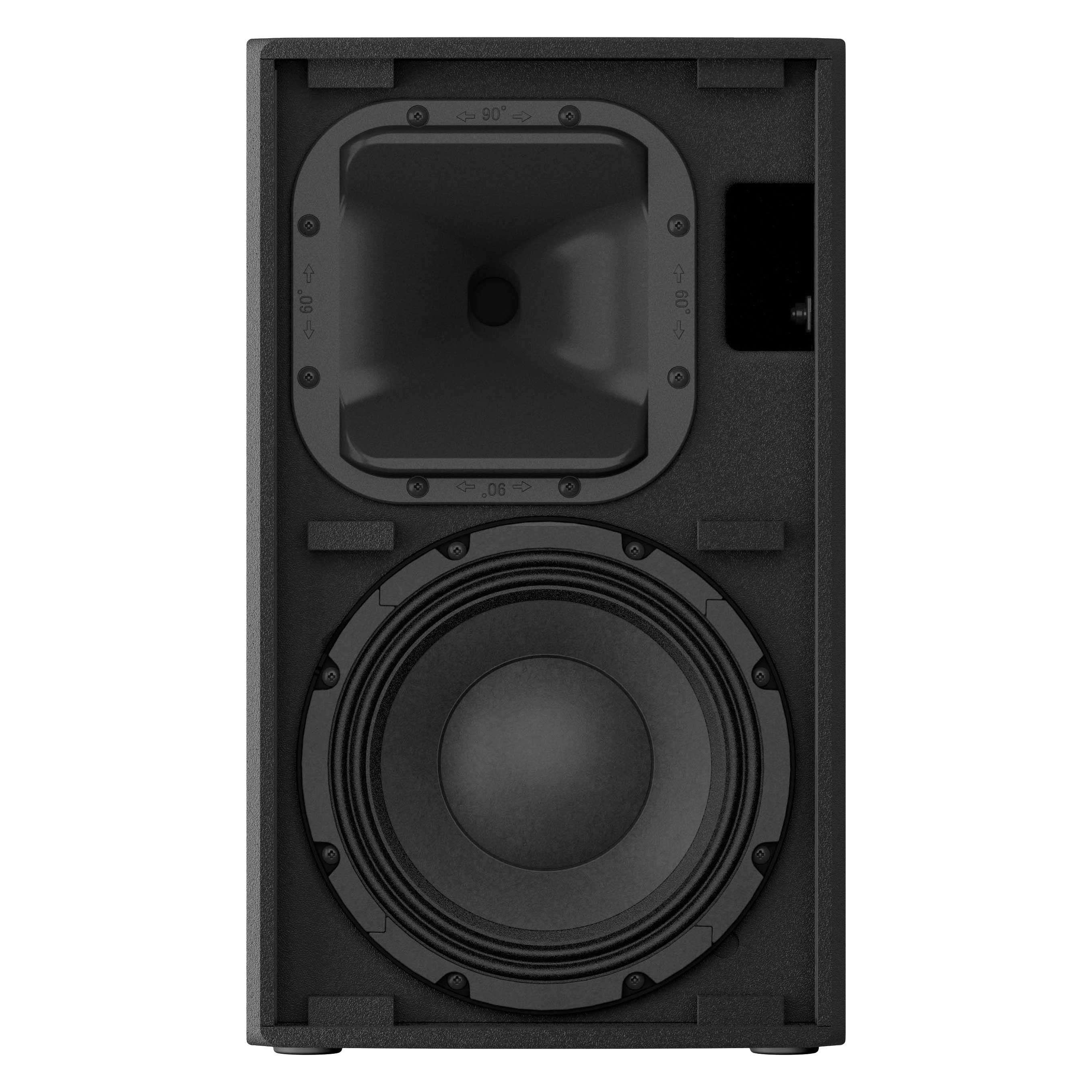

Yamaha DZR10W Powered PA Speaker
Image Gallery
Was £1,269.00 Save £370.00
£899.00
In Stock
2 AvailableOrder before 1PM for FREE Delivery Tomorrow
Includes 30-Day Exchange & 3-Year Warranty
Frequently Bought Together
Manufacturer's ID: CDZR10WUK
The DZR10 is 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive 137dB SPL. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR10 realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.
- 2-way powered loudspeaker with a 2” HF and a 10" LF
- Maximum 137dB SPL and 44Hz-20kHz frequency range is ideal for today’s audio engineering demands
- High power 2000W Class-D amplifier module
- 96kHz DSP and FIR filter for true high-resolution sound with super low latency
- Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- D-Contour and highly reliable protection circuits
- Floor monitoring setting
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- Rotatable horn and variety of U-bracket options (UB-DZR) for rigging allow for very flexible setup and speaker placement
Specification
|
Speaker type |
2-way, Bi-amped Powered Speaker, Bass-reflex |
|
|
Frequency range (-10dB) |
44Hz - 20kHz |
|
|
Coverage area |
H90ﾟ x V60ﾟ(Rotatable) |
|
|
Components |
LF |
10" Cone, 3" Voice Coil, Neodymium magnet |
|
MF |
- |
|
|
HF |
2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet |
|
|
Crossover |
1.8kHz (FIR-X) |
|
|
Sampling frequency rate |
Internal |
96kHz and FIR Filter |
|
A/D D/A Converters |
96kHz AD/DA |
|
|
Maximum output level (1m; on axis) |
137dB SPL *1 |
|
|
Power rating |
Dynamic |
2000W (LF:1000W, MF/HF: 1000W) *2 |
|
Continuous |
1300W (LF: 920W, MF/HF: 380W) |
|
|
I/O Connectors |
Analog I/O |
Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT |
|
Others |
USB2.0 Host 5V 500mA for USB memory DATA storage/load |
|
|
AC |
IEC AC inlet x1 (V-Lock) |
|
|
Amplifier class |
Class-D |
|
|
Cooling |
Fan cooling, Variable speeds |
|
|
Power consumption |
45W (Idle), 150W (1/8) |
|
|
Handle |
Aluminium die-cast, Top x1, Side x1 |
|
|
Rigging |
M10 x8, M8 x2 |
|
|
Dimensions |
W |
315 mm (12.4") |
|
H |
537 mm (21.1") (with rubber feet) |
|
|
D |
345 mm (13.6") |
|
|
Net weight |
17.9kg (39.5lbs) |
|
|
Options |
U-bracket: UB-DZR10H/V, Cover: SPCVR-DZR10 |
|
|
Others |
Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black |
|
|
Floor Monitor Angle |
50° |
|
|
Pole socket |
Φ35 mm x2 (0° or -7°) |
