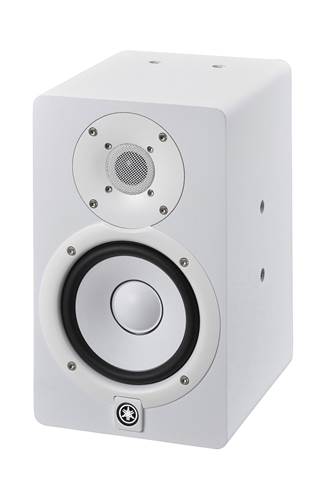

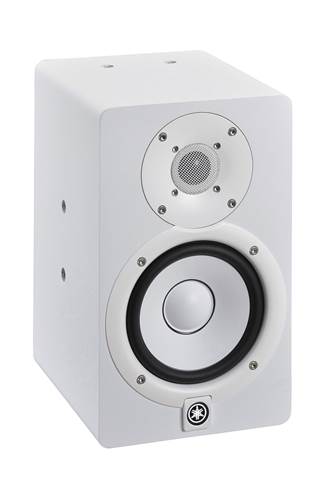

Yamaha HS5IW Monitor Speaker with Integrated Mounting Points (White)

RRP £267.60 Save £78.60

£189.00

In Stock

Order now for Delivery on Thursday

Includes 30-Day Exchange & 3-Year Warranty

Buy with confidence: We're the 1st, and only, UK guitar retailer to offer a 3-year warranty & 30-day exchange as standard.

Delivery on Thursday

With 1 hour Delivery slot

Click & Collect

Live Stock levels from all our stores.

Store
Availability
Edinburgh
Collect on Saturday
Glasgow
Collect on Saturday
Newcastle
Collect on Saturday
Birmingham
Collect on Saturday
Epsom
Collect on Saturday
Camden
Collect on Saturday

Manufacturer's ID: CHS5IWUK

Ever since the 1970's the iconic white woofer and signature sound of Yamaha's nearfield reference monitors have become a genuine industry standard for a reason - their accuracy. Unlike studio monitors with added bass or treble frequencies which may sound more flattering at first, HS Series speakers were designed to give you the most honest, precise reference possible, providing an ideal sonic platform to build on throughout the mixing process. By combining acquired knowledge and expertise with state-of-the-art sound technologies, Yamaha's speaker engineering team have examined, then optimized, every aspect that has contributed to making these monitors the most trusted in the business. The second generation HS Series also adds a new 6.5" model to the lineup, bringing its exceptional accuracy to an even greater variety of recording environments.

2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter. Mounting points on 4 surfaces are available.

  • 2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter
  • 54Hz - 30kHz (-10dB), 74Hz - 24kHz (-3dB) frequency response
  • 45W LF plus 25W HF bi-amp system for high-performance 70W power amplification
  • ROOM CONTROL and HIGH TRIM response controls
  • XLR and TRS phone jack inputs accept balanced or unbalanced signals
  • Mounting points on 4 surfaces
  • Packaging single

Specification

Speaker type 2-way bi-amp powered studio monitor
Frequency response (-10dB) 54Hz - 30kHz
Frequency response (-3dB) 74Hz - 24kHz
Components LF 5" cone
HF 1" dome
Crossover 2kHz
Output power 70W (LF:45W, HF:25W)
Input sensitivity -10 dBu/10k ohms
I/O connectors XLR3-31 type (balanced), PHONE (balanced)
Indicators Power ON (White LED)
Power consumption 45W
Shape Bass-reflex type
Cabinet material MDF
Flying and mounting hardware Four surfaces x 2 x M5 (60 mm pitch)
Dimensions W 170mm (6-11/16")
H 285mm (11-1/4")
D 222mm (8-3/4")
Net weight 5.5 kg (12.1 lbs.)
Accessories Owner's Manual, Power cord, Screws for installing brackets x 2
Options Wall / ceiling bracket BWS20, Ceiling bracket BCS20
Packaging Single
Others LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz)
