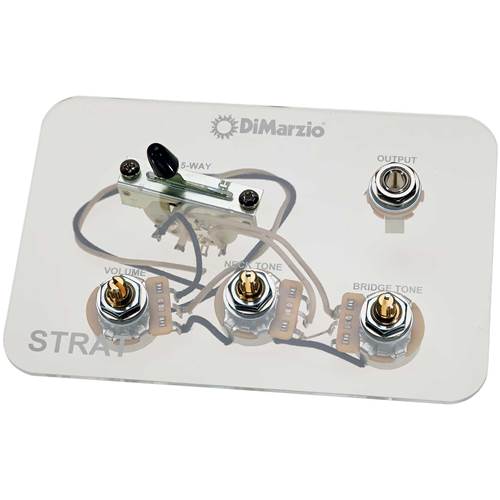

DiMarzio Stratocaster Wiring Harness with 5-Way Switch and 250k Pots

The heart of this drop-in prewired Strat® harness is our custom designed 250K pot. First built over 45 years ago, we wanted the smooth feel and graduated taper found on some vintage 50s guitars. Using a 10-step rotary switch, we created a taper that works with DiMarzio pickups. It’s neither a linear nor audio taper pot -- it's DiMarzio's custom taper. To further increase reliability, we make the center shaft and threaded parts from solid machined brass instead of cheap castings.

This kit also features a premium 5-way CRL-style switch and Switchcraft output jack, as well as both black and white switch tips.

DiMarzio wiring harnesses are all hand assembled and tested in the USA. We use the best sound-tested parts available from Switchcraft®, Sprague®, and CTS®, and we include vintage-style cloth wire.

*Please note: these are direct replacements for the standard 3/8-inch (9.525mm) holes found on most Fender® guitars. Some enlargement may be required for non-standard or import-specific hole diameters.

Component List:
DIMARZIO CUSTOM TAPER POTENTIOMETERS - 250K
SPRAGUE ORANGE DROP CAPACITOR - .022UF, 100VOLT
GAVITT VINTAGE HOOKUP WIRE - 22 GAUGE
CRL FIVE-WAY SWITCH

Fender, Strat and Stratocaster are registered trademarks of Fender Musical Instruments Corp., with which DiMarzio, Inc. is not affiliated.
