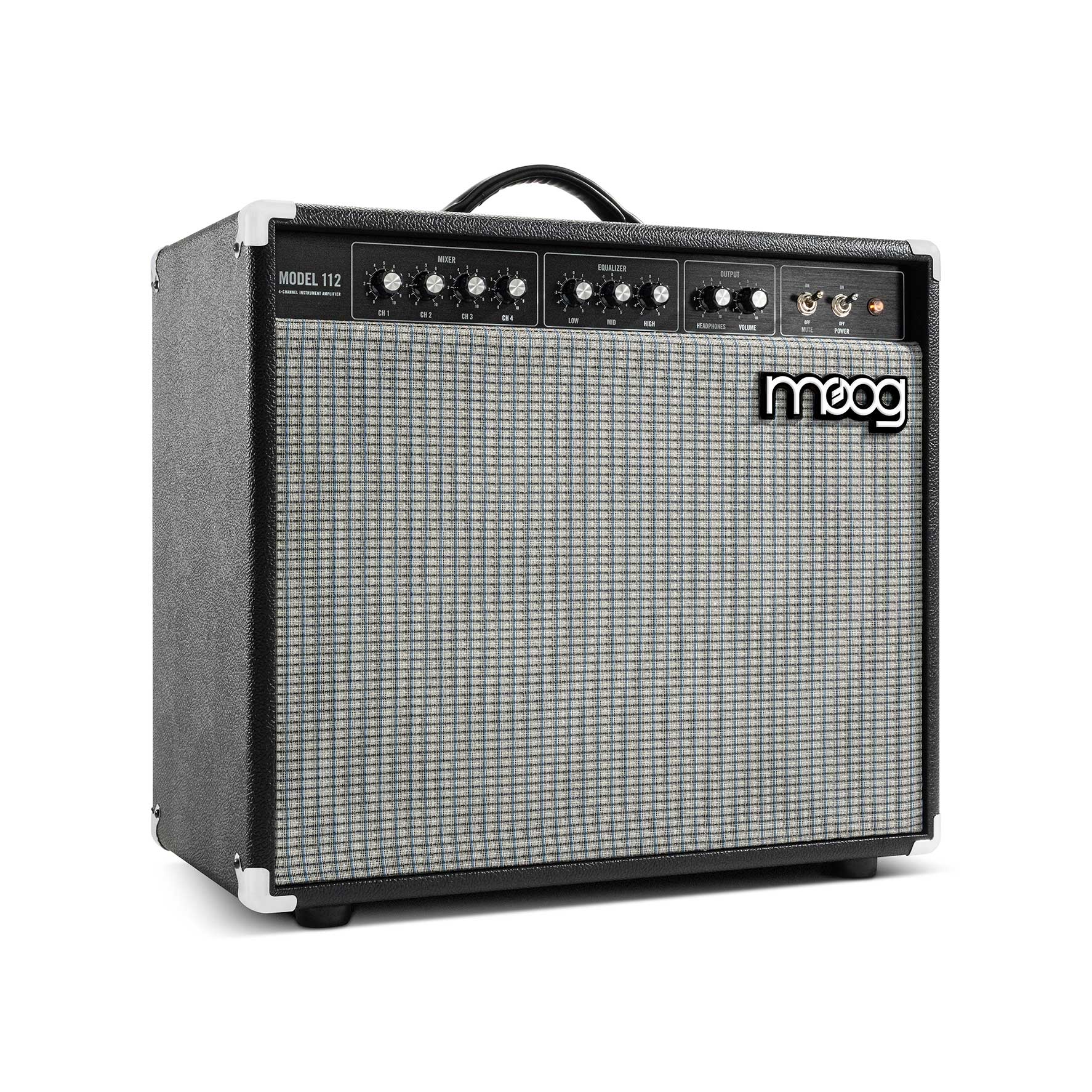

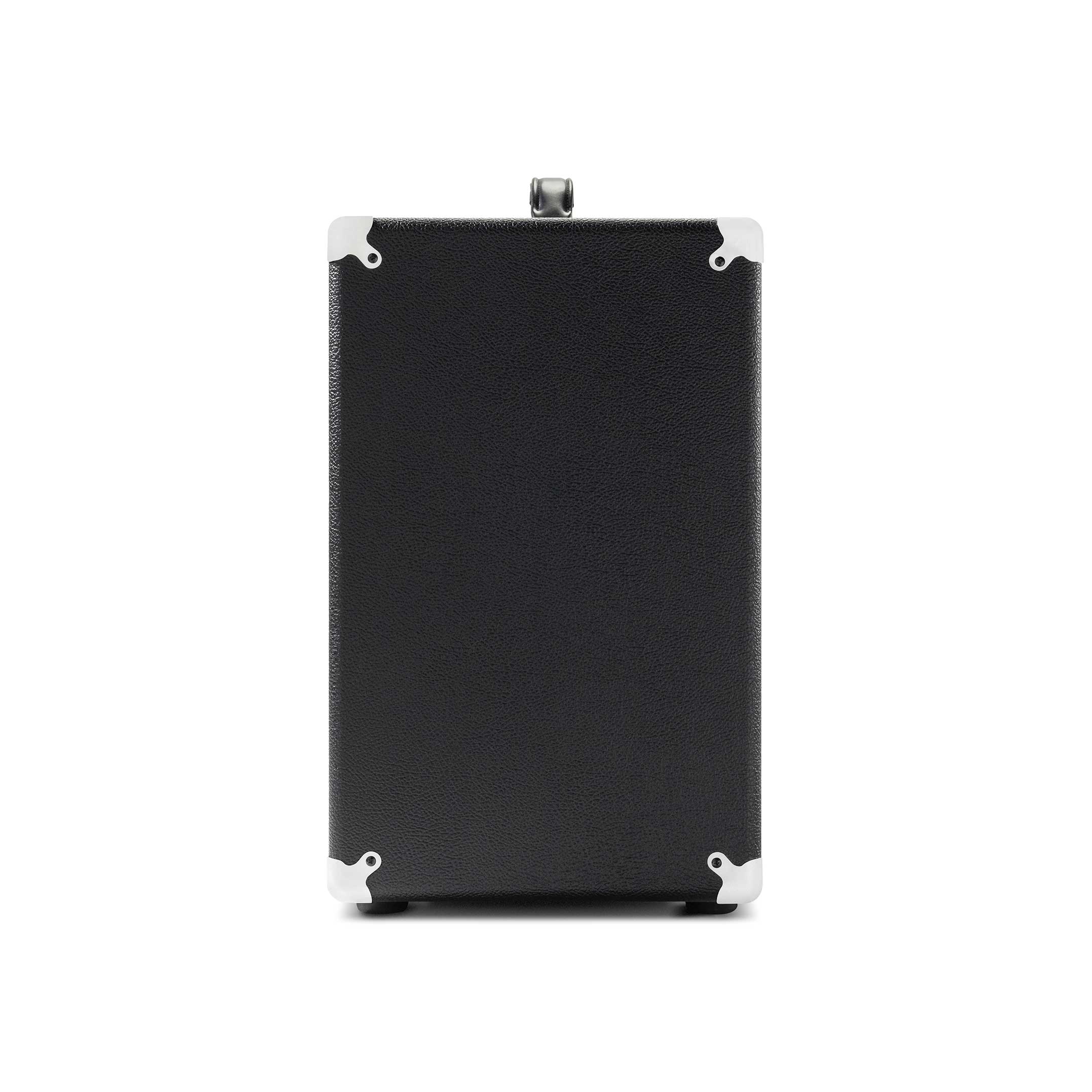

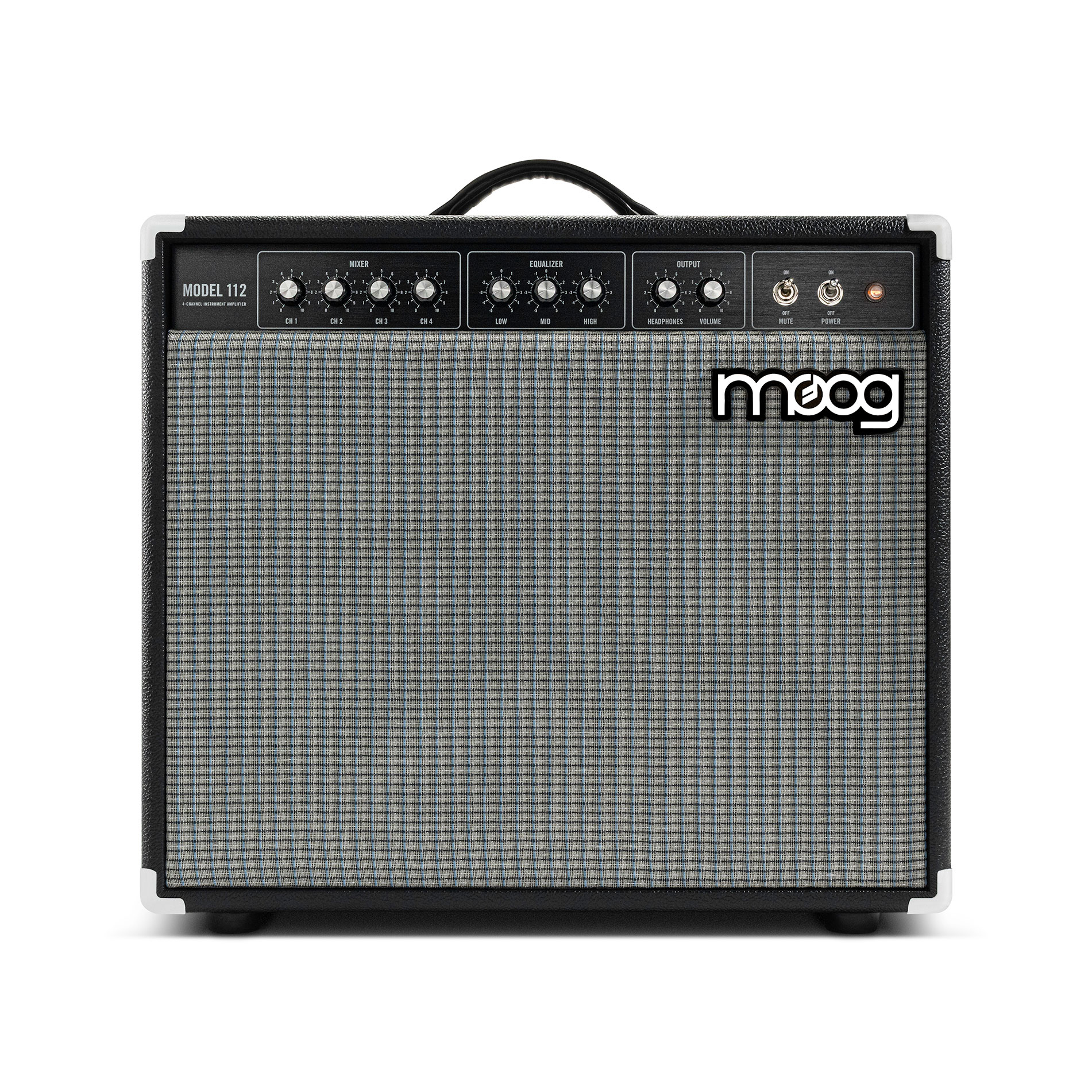

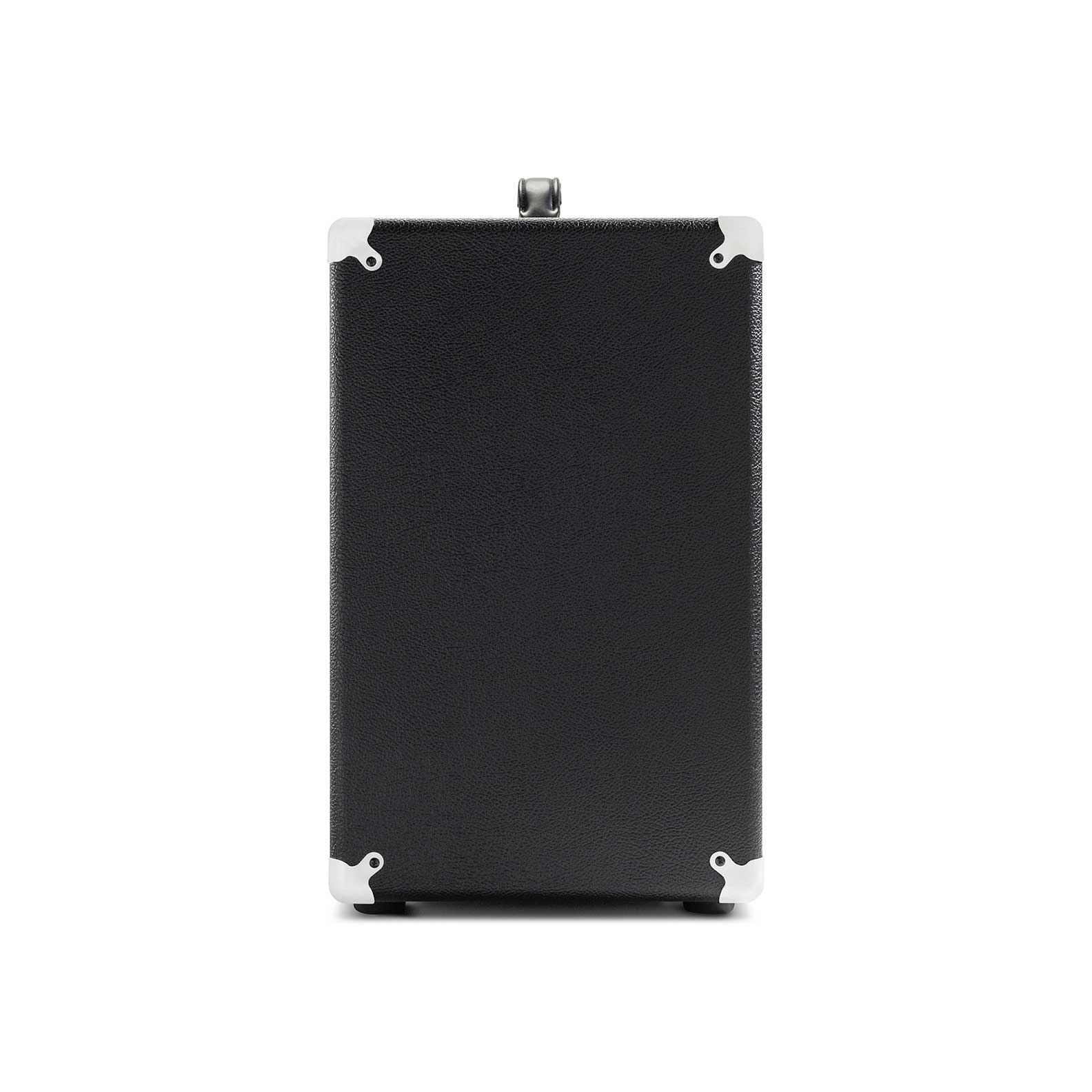

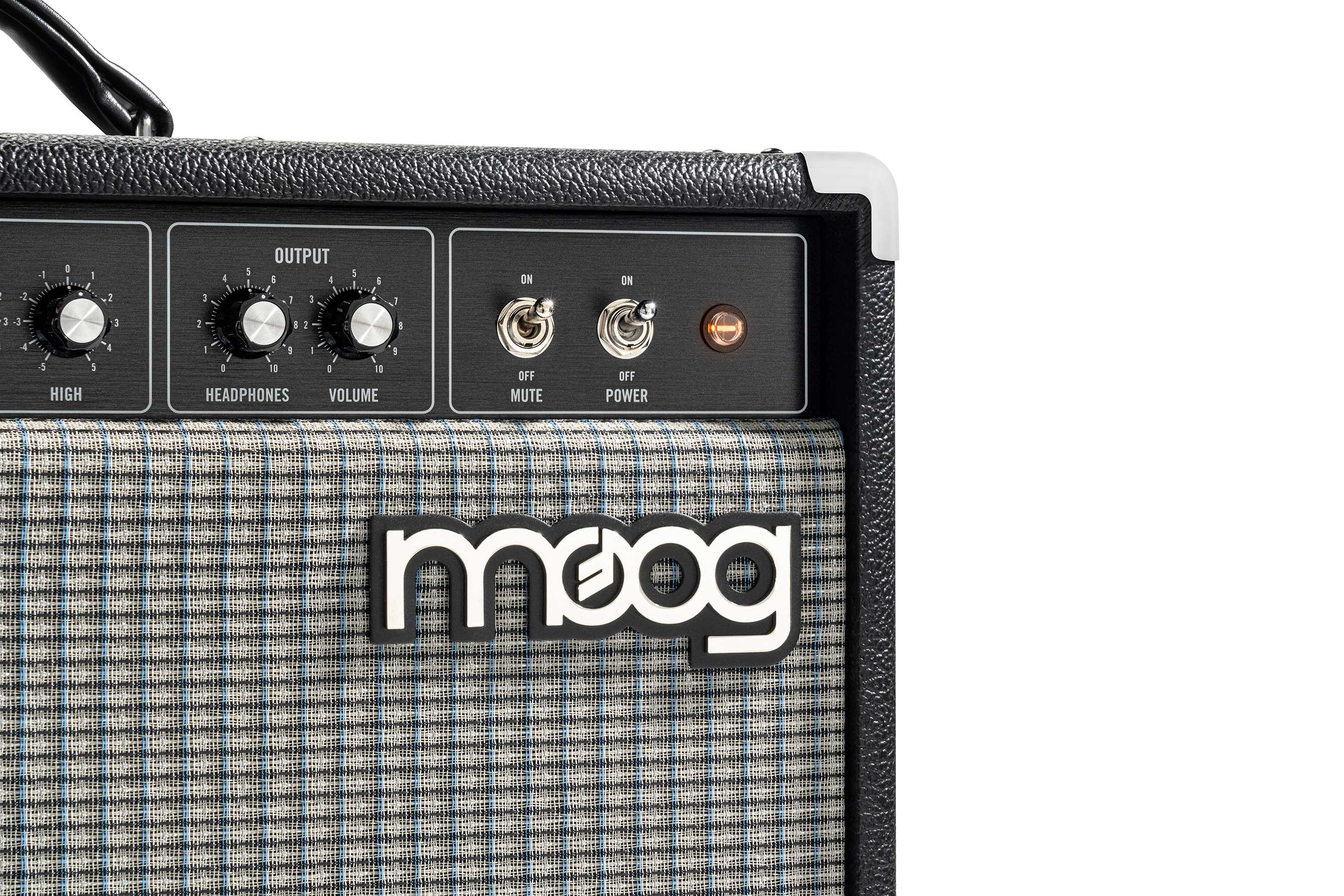

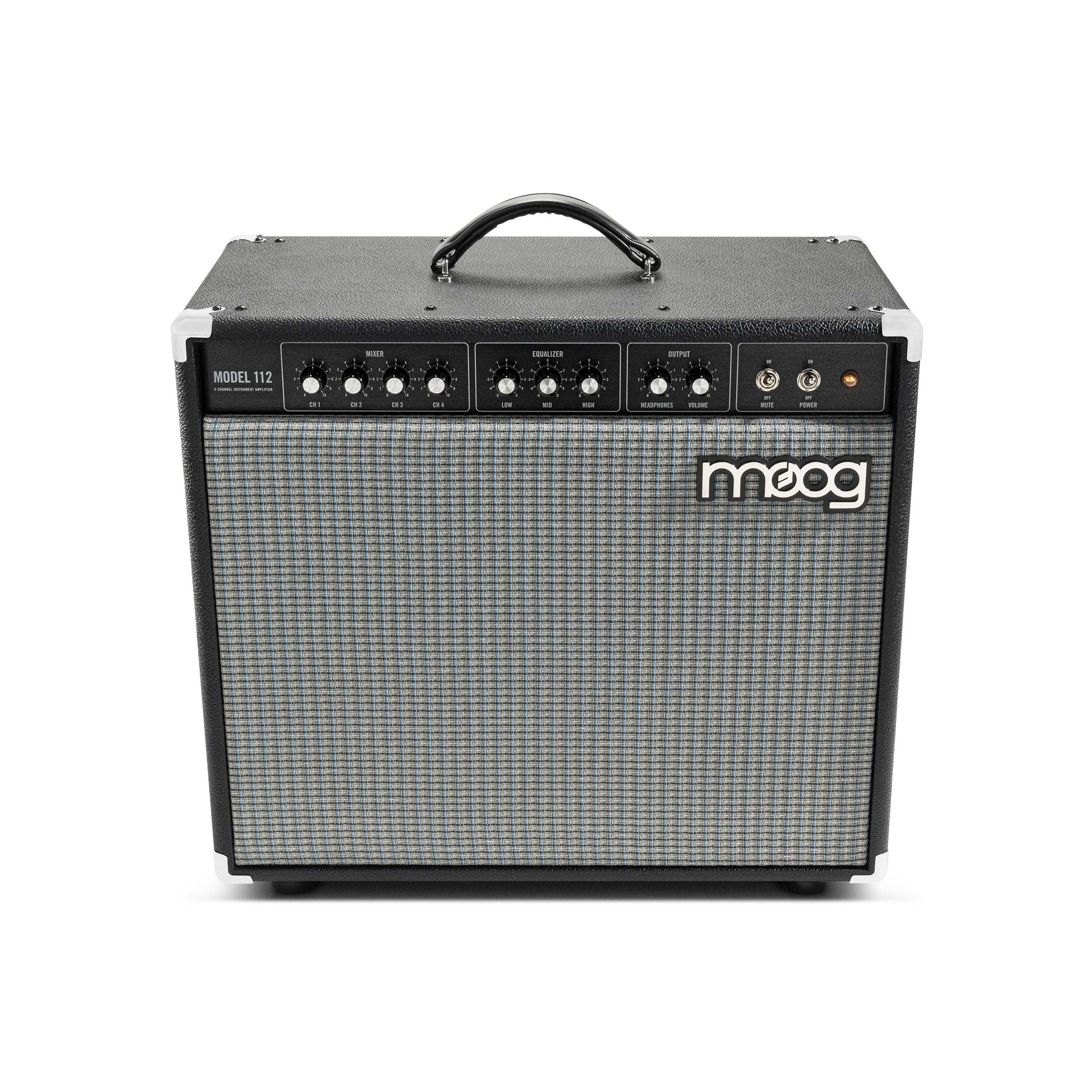

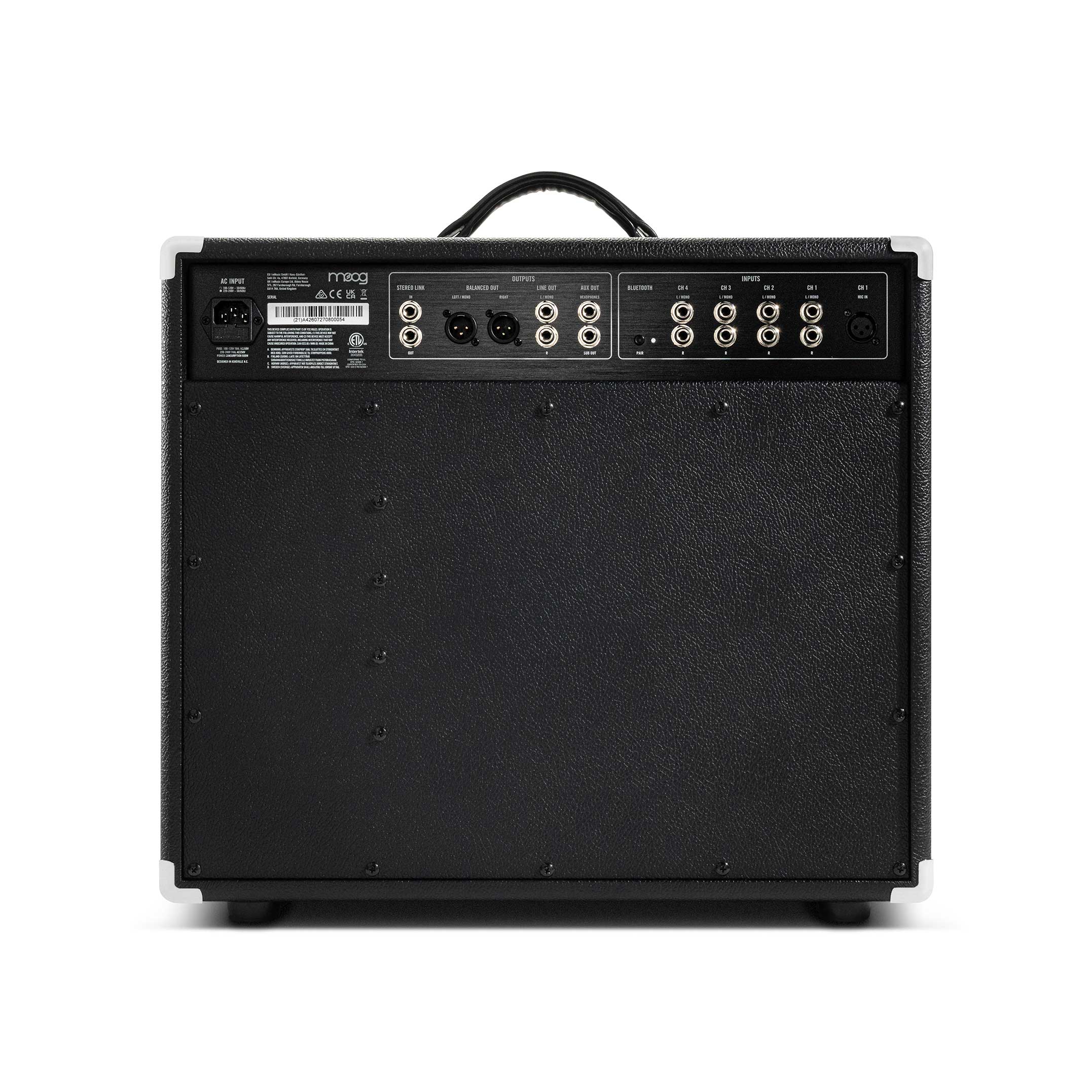

Moog Model 112 4-Channel Instrument Amplifier
New Arrival
![Moog Model 112 4-Channel Instrument Amplifier]( "Moog Model 112 4-Channel Instrument Amplifier")
![Moog Model 112 4-Channel Instrument Amplifier]( "Moog Model 112 4-Channel Instrument Amplifier")
![Moog Model 112 4-Channel Instrument Amplifier]( "Moog Model 112 4-Channel Instrument Amplifier")
![Moog Model 112 4-Channel Instrument Amplifier]( "Moog Model 112 4-Channel Instrument Amplifier")
![Moog Model 112 4-Channel Instrument Amplifier]( "Moog Model 112 4-Channel Instrument Amplifier")
![Moog Model 112 4-Channel Instrument Amplifier]( "Moog Model 112 4-Channel Instrument Amplifier")
![Moog Model 112 4-Channel Instrument Amplifier]( "Moog Model 112 4-Channel Instrument Amplifier")
![Moog Model 112 4-Channel Instrument Amplifier]( "Moog Model 112 4-Channel Instrument Amplifier")
Image Gallery
£679.00
In Stock
7 AvailableOrder before 4PM for FREE Delivery Tomorrow
Includes 3-Year Warranty & Extended Exchange
Frequently Bought Together
Manufacturer's ID: MODEL112XUK
The Moog Model 112 is a premium full-range, flat-response instrument amplifier created for musicians who want to hear every detail of their instrument with clarity, depth, and authenticity.
Made to be paired with synthesizers, keyboards, drum machines, modeling systems, or preamps, Model 112 combines a powerful 12-inch speaker system with all-analog amplification to deliver accurate, uncolored sound. With effectively zero perceptible latency, this amp preserves the dynamics and expressive nuances that make each performance unique.
A built-in 4-channel stereo mixer allows multiple instruments and audio sources to be connected simultaneously, while a musical 3-band Baxandall EQ provides simple, effective tonal shaping for any environment. Bluetooth streaming, balanced outputs, headphone monitoring, and Stereo Link capability bring modern flexibility to rehearsals, recording sessions, and live performance.
Versatile and intuitive, Model 112 gives musicians the freedom to focus on performance while remaining fully connected to the sound that inspires them.
- All-analog full-range, flat-response amplification with effectively zero perceptible latency
- 440W RMS system power (400W LF + 40W HF, bi-amplified)
- Extended low-frequency response (40Hz-20kHz)
- 12-inch woofer and 1-inch compression driver with 90° conical horn

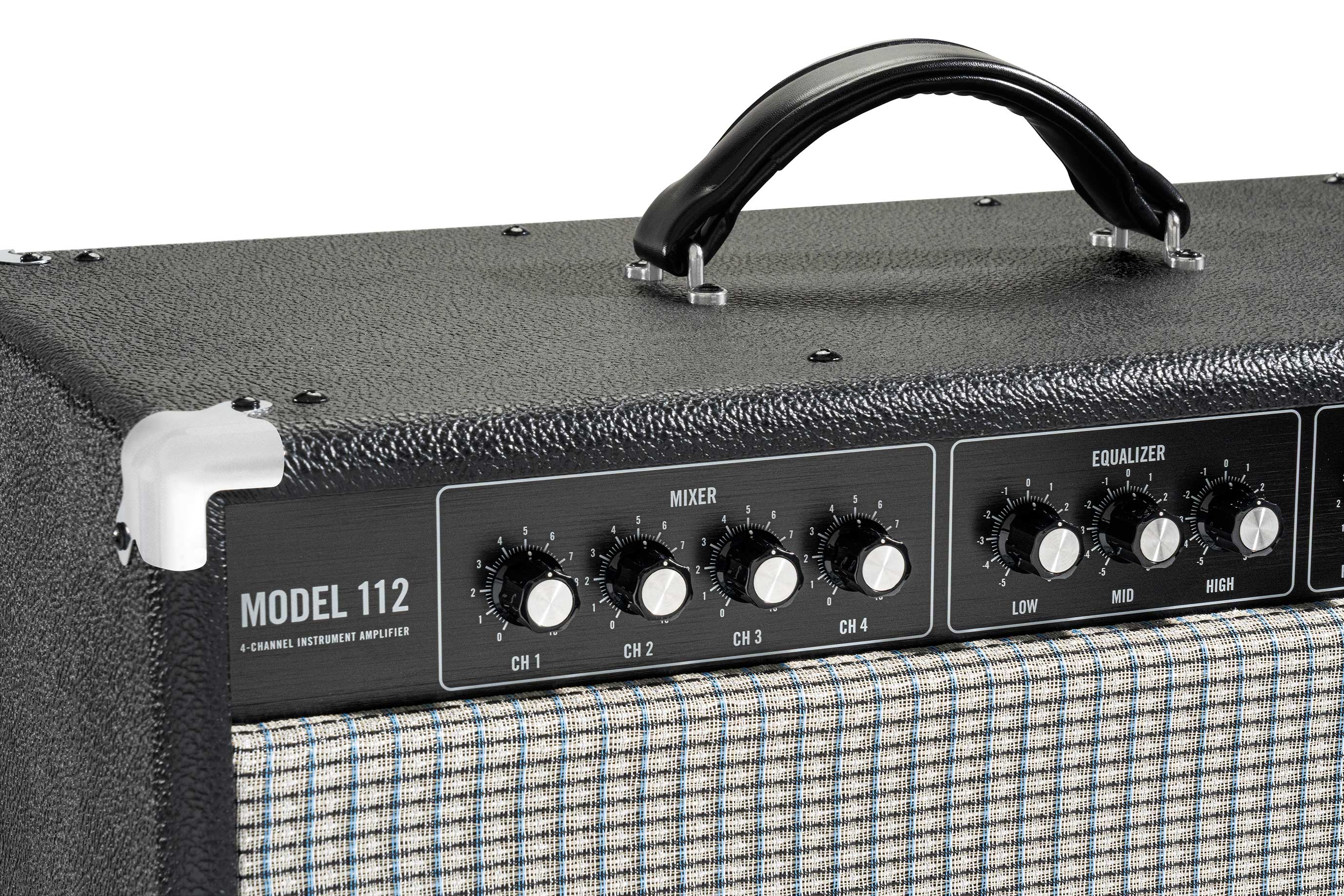

- Integrated 4-channel analog stereo mixer with Channel 1 mic preamp
- 3-band Baxandall master EQ for venue optimization
- Bluetooth® 6.0 audio streaming

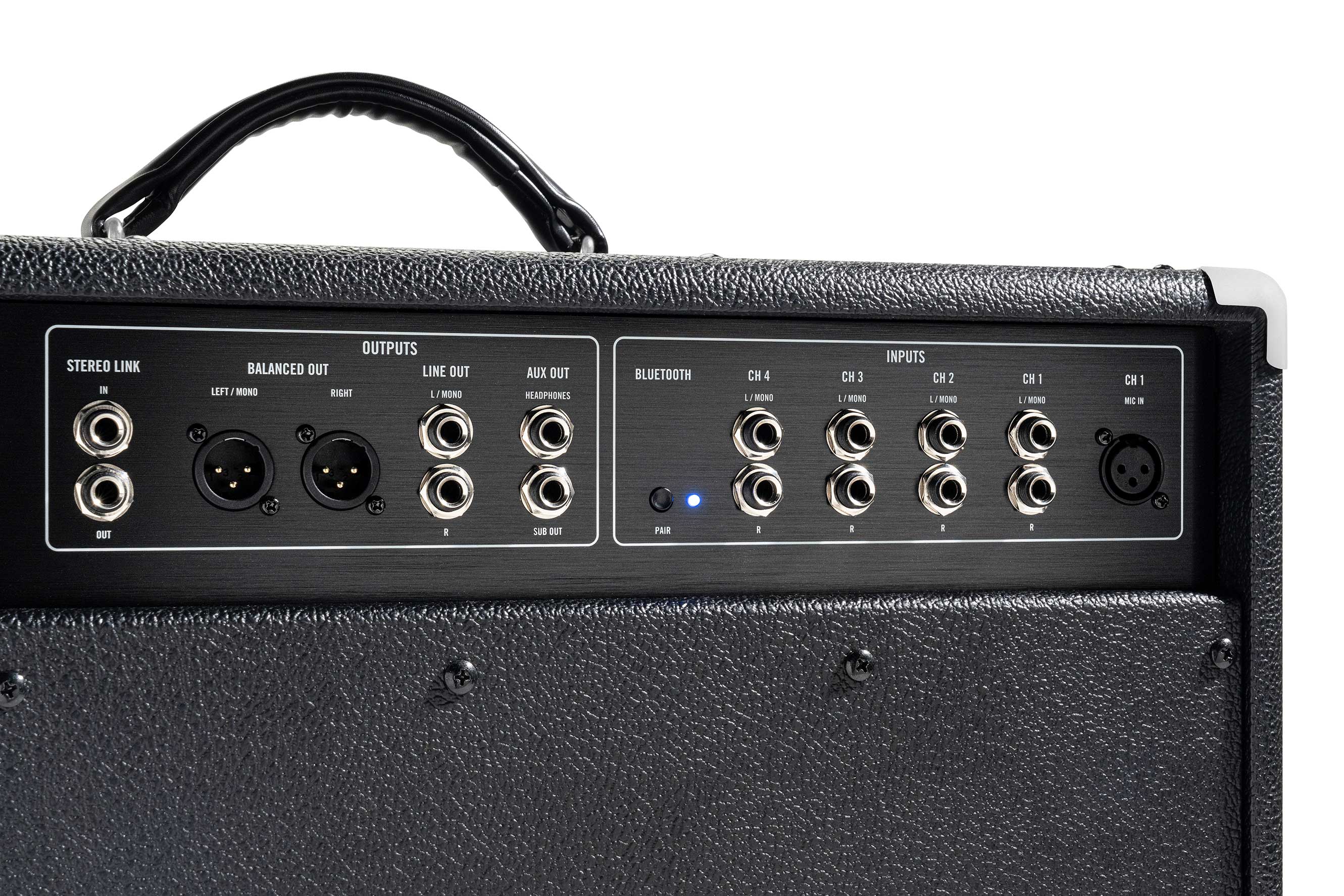

- Stereo XLR and TRS outputs for PA connectivity
- Stereo Link for true stereo amplifier configurations
- Built-in headphone amp for silent rehearsal
- Top carry handle
- Rugged Moog tolex covering and vintage grille cloth
Specification
MIC INPUTS (CH 1)
- Connector: XLR
- Maximum Input Level: +18 dBu
- Frequency Response: 20 Hz–20 kHz (+/- 3 dB)
- Input Impedance: 600 Ohms
LINE INPUTS (CH 1–4)
- Connector: 2 x TRS input connectors (left mono)
- Maximum Input Level: +18 dBu
- Frequency Response: 20 Hz–20 kHz (+/- 3 dB)
- Input Impedance: Line 22K Ohms
MAIN OUTPUTS
- Connector: 2 x XLR + 2 x TRS
- Output Level (for 0.5% THD): Nominal +4 dBu
- Input Impedance (unbalanced): 100 Ohms
BLUETOOTH
- Specification: 6.0
- Profiles: A2DP, AVRCP
GENERAL
- Peak System / RMS Power: 880W Peak / 440W RMS (400W LF + 40W HF bi-amplified)
- LF Driver: 12-inch
- HF Driver: 1-inch compression driver
- Coverage (H x V): 100 x 100
- Frequency Response (-3 dB / -10 dB): 49 Hz–20 kHz / 40 Hz–20 kHz
- AC Power Input: 100–120VAC / 60Hz; 220–240VAC / 50Hz
- Power Connector: IEC
- Enclosure: Tolex-wrapped wood with protective metal corners
- Handles: 1 top carry handle
- Sub Dimensions (HWD): 20.5 x 21.1 x 12.4 inches / 52.0 x 53.7 x 31.4 cm
- Weight: 47.84 lbs / 21.7 kg
