Manufacturer's ID: MS20MINI
What we say:
At A Glance:

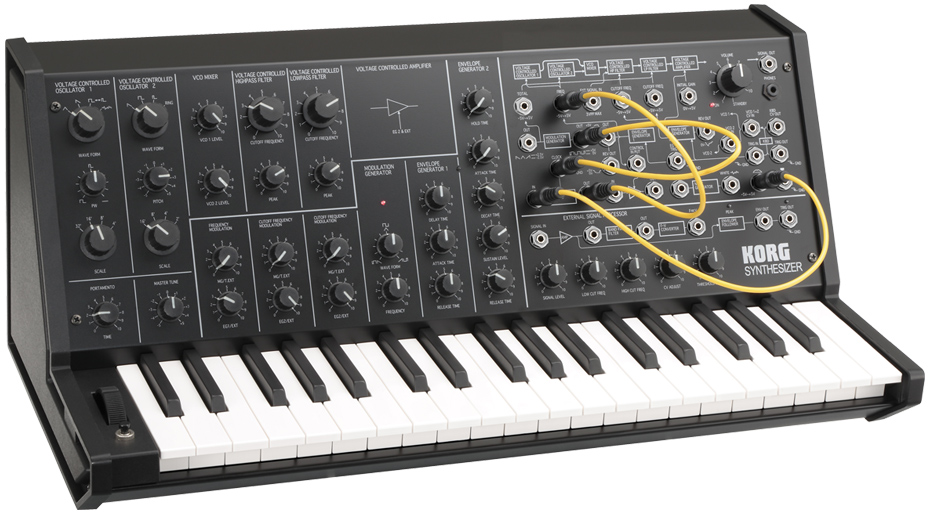

The MS-20 Mini from Korg is a detailed recreation of the classic MS-20 synthesizer from the late 70s. Coming in at 86% of the original size, the MS-20 Mini is ideal for the modern setup where space is limited. That doesn’t mean Korg have skimped on any of the features or circuitry however. It features a complete replication of the original circuitry, so you still have those rich analogue tones, modulation options and patching system on board.
Features We Love:
Classic MS-20 Sound
The MS-20 Mini has been faithfully recreated by the same team that worked on the original back in the 1970s. They have gone to great lengths to replicate the circuitry of the original unit, including detailed listening to the sound of any replacement parts that are no longer in production.
Extensive Patching System
The patch bay on the MS-20 Mini allows you to manipulate the sound of the unit, and bend it beyond your imagination. You can use the included patch cables to route different sections of the synth to one another. The signal flow guide on the front panel will help you to route effectively and create some unique and interesting sounds.
Compact and Portable
The MS-20 Mini comes in at 86% of the size of the original unit, and weighs just 4.8kg! This makes it much easier to cart around to gigs, or fit neatly into a studio where space is tight.
Highlights:
- Faithful Recreation of the MS-20
- Compact and Portable design
- Extensive patching system
- Classic sound
- Plenty of modulation features

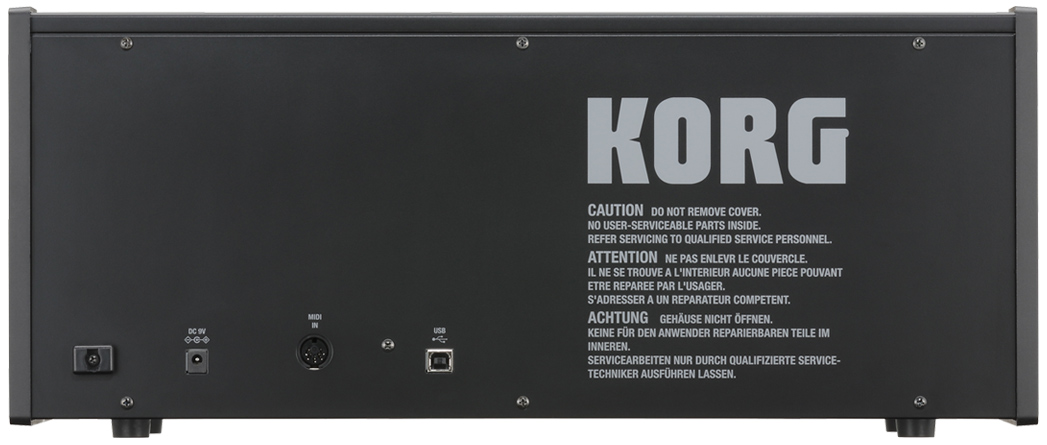

- USB and MIDI in connections
Specification
| Keyboard | C – C: 37-notes (3 octaves), mini keyboard designed specifically for the MS-20 mini |
| Manual controller | Control wheel (center click), Momentary switch -->GND |
| Input and Output | Signal In: Amplifier Out, |
| Band pass filter Out, | |
| CV Out (0 - +8.4V), | |
| ENV Out (0 - +5V), | |
| Trig Out (+5V-->GND), | |
| Signal out: Signal output (mono 1/8" mini phone jack, 2Vp-p output impedance 3.5k Ω) | |
| Head phones: Head phones output (Stereo 1/8" mini phone jack, 33 Ω 48mW), | |
| USB: Type B, USB-MIDI Input/Output | |
| *Only note messages (velocity is not used) can be transmitted and received. | |
| MIDI: MIDI Input | |
| *Only note messages (velocity is not used) can be transmitted and received. | |
| Power Supply | DC9V |
| Dimensions: (W x D x H) | 493 ×257 ×208 mm / 19.41 x 10.12 x 8.19 inches |
| Weight | 4.8 kg / 10.58 lbs. |
| Accessories | AC adaptor (9V/1.7A), Patch Cord x 10 |
| Control Section | |
| 1. Keyboard | C – C: 37-notes (3 octaves), mini keyboard designed specifically for the MS-20 mini |
| 2. Voltage Controlled Oscillator 1 (VCO 1) | Scale (32', 16', 8', 4') (6 octaves, +cent, -cent) |
| Wave form (Triangle, Sawtooth, PW-Square, White Noise) (4 modes) | |
| Pulse width adjust 1:1 - 1:infinity | |
| 3. Voltage Controlled Oscillator 2 (VCO 2) | Scale (16', 8', 4', 2') (6 octaves, +cent, -cent) |
| Wave form (Sawtooth, Square, Pulse, Ring modulator) (4 modes) | |
| Pitch (± 1 octave) | |
| 4. VCO Master control | Master tune (± 100cent) |
| Portamento (max. 10sec) | |
| FFrequency modulation intensity by MG/T.EXT (-5V - +5V) | |
| Frequency modulation intensity by EG1/EXT (-5V - 0V) | |
| 5. VCO Mixer | VCO 1 Level |
| VCO 2 Level | |
| 6. Voltage Controlled High Pass Filter (VCF HPF) | Cutoff frequency (50Hz - 15,000Hz) |
| Peak (flat - self OSC) | |
| Cutoff frequency modulation intensity by MG/T.EXT (-5V - +5V) | |
| Cutoff frequency modulation intensity by EG2/EXT (-5V - +5V) | |
| 7. Voltage Controlled Low Pass Filter (VCF LPF) | Cutoff frequency (50Hz - 15,000Hz) |
| Peak (flat - self OSC) | |
| Cutoff frequency modulation intensity by MG/T.EXT (-5V - +5V) | |
| Cutoff frequency modulation intensity by EG2/EXT (-5V - +5V) | |
| 8. Envelope Generator 1 | Delay time (10sec) |
| Attack time (10sec) | |
| Release time (10sec) | |
| 9. Envelope Generator 2 | Hold time (20sec) |
| Attack time (10sec) | |
| Decay time (10sec) | |
| Sustain level (0V - 5V) | |
| Release time (10sec) | |
| 10. Modulation Generator (LFO) | Wave form (Positive Sawtooth - Triangle - Negative Sawtooth, Wide Pulse - Square - Narrow Pulse) |
| Frequency (0.1Hz ～ 20Hz) | |
| 11. Manual controller | Cntrol wheel (center click) |
| Momentary switch -->GND | |
| 12. Power switch and Volume | Volume |
| 13. Indicator | LED (KBD trigger, Modulation Generator rate, Power ON) |
| External Signal Processor | |
| 1. Control section | Input signal level |
| Low cut frequency (50Hz - 2,500Hz) | |
| High cut frequency (100Hz - 5,000Hz) | |
| CV adjust | |
| Threshold level | |
| 2. Input and Output | Signal In |
| Amplifier Out | |
| Band pass filter Out | |
| CV Out (0 - +8.4V) | |
| ENV Out (0 - +5V) | |
| Trig Out (+5V-->GND) | |
| 3. Indicator (LED) | Peak indicator |
| Trigger indicator | |
| Patch Panel | |
| 1. Keyboard | Keyboard control voltage output (Exponential) (0 - +8V) |
| Keyboard trigger output (+5V-->GND) | |
| VCO-1 + VCO-2 control voltage input (Linear response) (0 - +8V) | |
| VCO-2 control voltage input (Linear response) (0 - +8V) | |
| 2. VCO | VCO-1 + VCO-2 external frequency control input (OCT/V) (-5V - +5V) |
| 3. VCF | External signal input (3Vp-p max.) |
| External High pass filter cutoff frequency control input (2OCT/V) (-5V - +5V) | |
| External Low pass filter cutoff frequency control input (2OCT/V) (-5V - +5V) | |
| 4. VCO + VCF | Total external modulation input (T.EXT) (-5V - +5V) |
| 5. VCA | External initial gain control input (0 - +5V) |
| 6. EG | EG 1 envelope signal normal output (-5V - 0V) |
| EG 1 envelope signal reverse output (+5V - 0V) | |
| EG 1 + EG 2 trigger input (-->GND) | |
| EG 1 trigger input (-->GND) | |
| EG 2 envelope signal reverse output (+5V - 0V) | |
| 7. MG | Triangle output (Positive Sawtooth - Triangle - Negative Sawtooth) (5Vp-p) |
| Rectangle output (Wide Pulse - Square - Narrow Pulse)(0 - +5V) | |
| 8. Noise Generator | Pink noise output (5Vp-p) |
| White noise output (5Vp-p) | |
| 9. Sample and Hold | Clock trigger input (-->GND) |
| Sample signal input (5Vp-p max.) | |
| S/H output (5Vp-p max.) | |
| 10. Modulation VCA | Control voltage input (0 - +5V) |
| Signal input (-5V - +5V) | |
| Signal output (-5V - +5V) | |
| 11. Manual controller | Control wheel output (-5V<--0V-->+5V) |
| Momentary switch output (-->GND) | |
| 12. Signal out | Signal output (mono 1/8" mini phone jack, 2Vp-p output impedance 3.5k Ω) |
| 13. Head phones | Head phones output (Stereo 1/8" mini phone jack, 33 Ω 48mW) |
| 14. USB | Type B, USB-MIDI Input/Output |
| *Only note messages (velocity is not used) can be transmitted and received. | |
| 15. MIDI | MIDI Input |
| *Only note messages (velocity is not used) can be transmitted and received. | |
| Others | |
| Power Consumption | 9W |
| Power Supply | DC9V |
| Dimensions (W x D x H) | 493 ×257 × 208 mm / 19.41 x 10.12 x 8.19 inches |
| Weight | 4.8 kg / 10.58 lbs. |
| Accessories | AC adaptor (9V/1.7A), Patch Cord x 10 |
