Yamaha DBR10 Active Speaker (Single)

£299.00

In Stock

9 Available

Order before 3PM for Delivery Tomorrow

Includes 30-Day Exchange & 3-Year Warranty

Buy with confidence: We're the 1st, and only, UK guitar retailer to offer a 3-year warranty & 30-day exchange as standard.

Make 3 payments of £99.67 No fees. Learn more

Buy Now, Pay 2023

  • No Deposit
  • Pay nothing for up to 12 months
  • Apply in minutes
Apply Now

Delivery Tomorrow

With 1 hour Delivery slot

Click & Collect

Live Stock levels from all our stores.

Store
Availability
Edinburgh
Collect on Wednesday
Glasgow
Collect on Wednesday
Newcastle
Collect on Wednesday
Birmingham
Collect on Wednesday
Epsom
Collect on Wednesday
Camden
Collect on Wednesday

Frequently Bought Together


Total Price: £

Manufacturer's ID: DBR10

The DBR10 is the most compact model in its series and in its class. Capable of delivering a maximum SPL of 129dB from its compact enclosure, the DBR10 can be used as a utility speaker in a variety of environments.

Specification

High-Efficiency 700W Class-D Amplifiers

The DBR10's lightweight, high performance Class-D amplifier is capable of producing up to 700W of power, achieving an SPL of 132dB, delivered with remarkable clarity and dynamic characteristics.

Custom Designed Transducer

The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1" precision compression driver* produces accurate mid-range and high frequencies.

A Rugged, Highly Portable Cabinet

DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while a newly designed ergonomic handles provide effortless transportation and system setup.

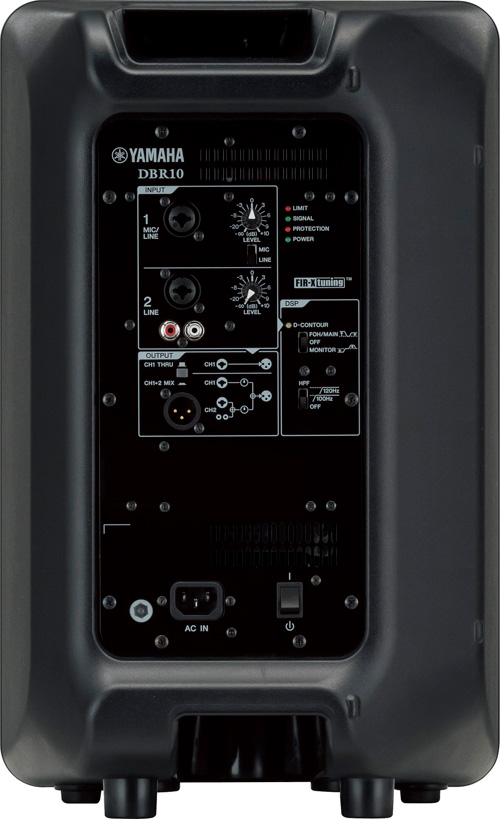

Easy-to-use Onboard 2-Channel Mixer

DBR Series speakers have two input channels. CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.

Smart Enclosure Design for Floor Monitoring

DBR Series speakers feature an optimized 50°wedge angle for floor monitoring. In addition the DBR12 and DBR15's symmetrical shape allows for effortless configuration of a mirror-mode floor monitoring system in either symmetrical or stereo sound field setups.

Rigging Points for Installation Applications

DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts.

Includes 4 year Yamaha warranty

Speaker type 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB) 55Hz – 20kHz
Crossover 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
Output power Dynamic:700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W)
Maximum output level (1m; on axis) 129dB SPL
I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Processors D-CONTOUR: FOH/MAIN, MONITOR, OFF
Cabinet material Plastic
Pole socket 35mm (Bottom x 1)
Size + Weight
Width 308mm (12.1")
Height 493mm (19.4")
Depth 289mm (11.4")
Weight 10.5 kg (23.2 lbs)
