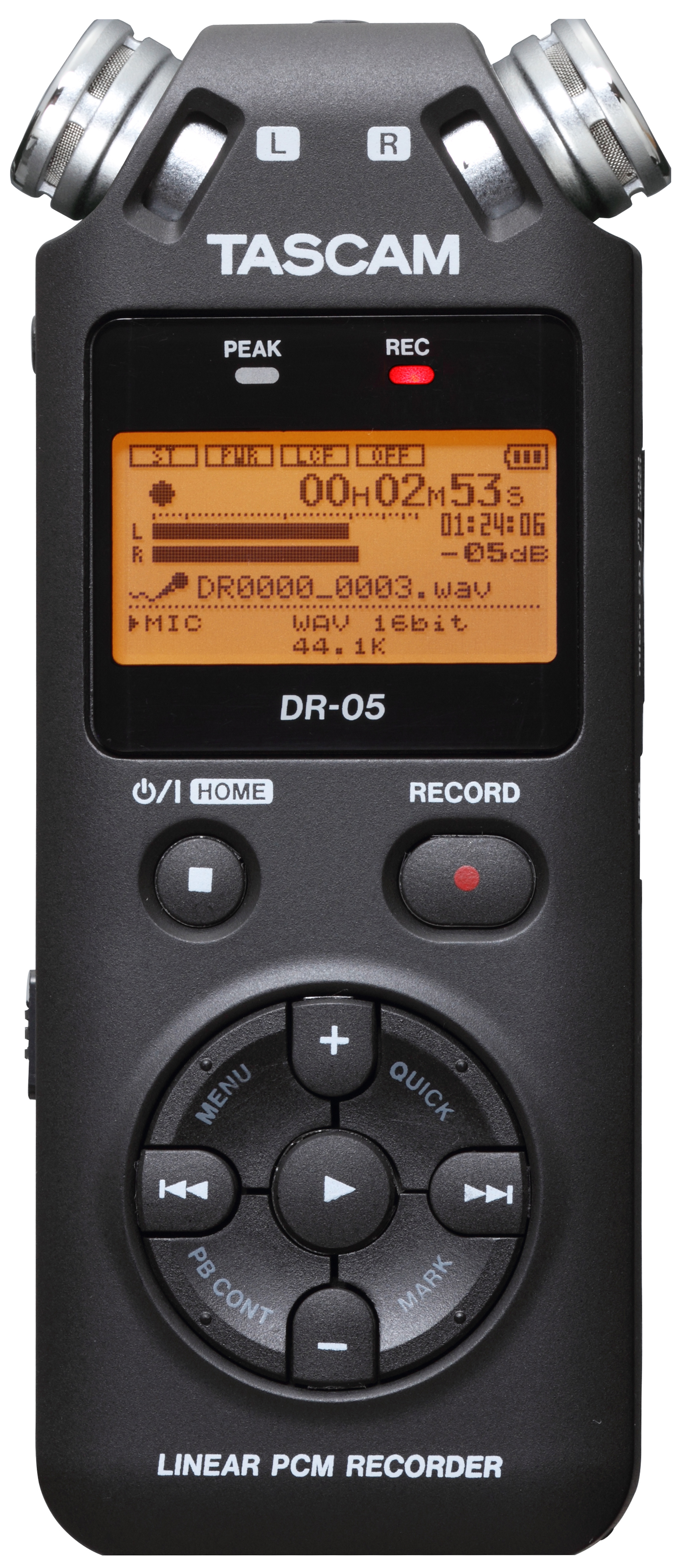

Tascam DR-05 V2 Portable Recorder

£72.00
Was: £111.60 - You Save: £39.60

In Stock: 10+ Available

Order now for Delivery on Sunday

Product Overview

TASCAM’s DR-05 brings high-quality stereo recording to an easy-to-use portable powerhouse with a size and price that anyone can handle. The DR-05 records in MP3 or WAV format – inc... read more

Product Overview

Manufacturer's ID: DR-05-V2

TASCAM’s DR-05 brings high-quality stereo recording to an easy-to-use portable powerhouse with a size and price that anyone can handle. The DR-05 records in MP3 or WAV format – including 96kHz/24-bit high-resolution audio – to microSD or microSDHC media. A pair of all-new microphones handles up to 125dB SPL with the sensitivity to capture every detail. With new recording features like Peak Reduction and Quick Menu, the DR-05 puts album-quality recording in the palm of your hand.

Specification

Premium-quality Sound

Everything about the DR-05 is designed to get the best quality recordings of your music. A new pair of built-in microphones withstands up to 125dB SPL – the volume of a jet plane from 200 feet away – yet still have the sensitivity to capture every detail of a performance. You can add your own microphone or line-level source through the 1/8” stereo input, including plug-in power for microphones that need it.

Internally, the DR-05’s digital and analog circuit boards are built separately to increase noise performance, with a low-impedance design to further decrease hiss. A separate power supply is sent to the A/D and D/A converter for even better audio performance. The result is clean sound quality – over 92dB signal to noise ratio, under 0.05% total harmonic distortion and 20Hz to 40kHz response (-1/+3dB) at 96kHz/24-bit resolution.

Simple to Operate

The layout of the DR-05 has been revamped to be quick and easy to work with one thumb. Operations like recording, adjusting levels, deleting bad takes and adding markers are just a button press away. Dig deeper to find features like limiting, low cut filtering, a built-in chromatic tuner and more.

One new feature that makes the DR-05 easy to operate is the new Peak Reduction feature. This setting automatically sets your recording level by listening to the input and adjusting for the best level. Unlike Auto Gain settings, this one only goes down to prevent accidental distortion after a period of low level like a break. Peak Recording works in rehearsal mode or in record, so if the performance is louder than the soundcheck you’re still safe. Used with the built-in limiter, it’s unlikely you’ll distort your career-making live recording.

Other classic TASCAM features are included, like Variable Speed Audition to loop and slow down music without changing the pitch – perfect for transcribing or learning new music. A Level Align function can be switched on for playback, to smooth out any sudden volume jumps, and a built-in speaker is also provided. The two AA batteries are enough to power the recorder for 17 1/2 hours, even while recording at CD quality.

For musicians and recordists at any stage of their career, there’s no easier way to get great-sounding recordings than TASCAM’s DR-05.

SPECIFICATIONS
Recording media microSD card (64MB to 2GB), microSDHC card (4GB to 32GB)
File system FAT16/32
File format WAV(BWF), MP3
WAV/BWF
Sampling frequency 44.1kHz/48kHz/96kHz
Quantization bit rate 16/24bit
MP3
Sampling frequency 44.1kHz/48kHz
Bit-rate for recording 32/64/96/128/192/256/320kbps
Playback bit rate 32 to 320kbps, VBR, ID3 tag Ver. 2.4
Number of channels 2-channel(Stereo)
Playback speed control (VSA) 0.5 to 1.5 times (in 0.1 increments) *44.1/48kHz only
Built-in microphone Omnidirectional, stereo
MIC/EXT IN
Connector 3.5mm (1/8") stereo mini jack, Unbalanced, Plug-in power
Input Impendance 25kΩ
Nominal Input Level -20dBV
Maximum Input Level -4dBV
PHONES/LINE OUT
Connector 3.5mm (1/8") stereo mini jack, Unbalanced
LINE
Output Impendance 12Ω
Nominal Output Level -14dBV(10kΩ load)
Maximum Output Level +2dBV(10kΩ load)
PHONES
Maximum Output 20mW + 20mW(32Ω load)
Built-in speakers 0.3W, Mono
Low-cut filter 40Hz/80Hz/120Hz
USB
Connector Mini-B type
Format USB2.0 HIGH SPEED
Chromatic tuner C1 to B6, A4 = 435Hz to 445Hz (in 1Hz increments)
Tripod attachment screw-hole 1/4 inch, Tripod attachment screw-hole
Power 2 AA batteries,
USB bus power,
AC100 to 240V (Optional AC adapter)
Power consumption 1.7W (Max)
Battery operation time
With alkaline batteries
(EVOLTA)
Approx. 17.5 hours (WAV, 44.1kHz, 16bit, using built-in microphone, JEITA)
With Ni-MH batteries
(eneloop)
Approx. 15.5 hours (WAV, 44.1kHz, 16bit, using built-in microphone, JEITA)
Dimensions 61(W)×141(H)×26(D)mm
2.4"(W)×5.55"(H)×1.02"(D)
Weight 116g / 0.25lb
(Without battery)
Standard accessories 2GB microSD card, USB connection cable, 2 AA batteries for confirming operation, Owner's Manual, Warranty card



Audio performance
Frequency response 20Hz to 20kHz +1dB/-3dB (Fs 44.1kHz, EXT IN to LINE OUT, JEITA)
20Hz to 22kHz +1dB/-3dB (Fs 48kHz, EXT IN to LINE OUT, JEITA)
20Hz to 40kHz +1dB/-3dB (Fs 96kHz, EXT IN to LINE OUT, JEITA)
Distortion 0.05% or lower (Fs 44.1k/4k8/96kHz, EXT IN to LINE OUT, JEITA)
S/N ratio 92dB or higher (Fs 44.1k/48k/96kHz, EXT IN to LINE OUT, JEITA)



Computer compatibilty
Windows
OS Windows XP, Windows Vista, Windows 7, Windows 8
CPU type/speed Pentium 300MHz or faster
Memory 128MB or more
USB USB2.0
Macintosh
OS Mac OS X Jaguar (V10.2), Mac OS X Panther (V10.3), Mac OS X Tiger (V10.4),
Mac OS X Leopard (V10.5), Mac OS X Snow Leopard(V10.6.8), OS X Lion(V10.7),
OS X Mountain Lion(V10.8)
CPU type/speed Power PC, iMac, G3, G4, G5 266MHz or faster
Memory 64MB or more
USB USB2.0
