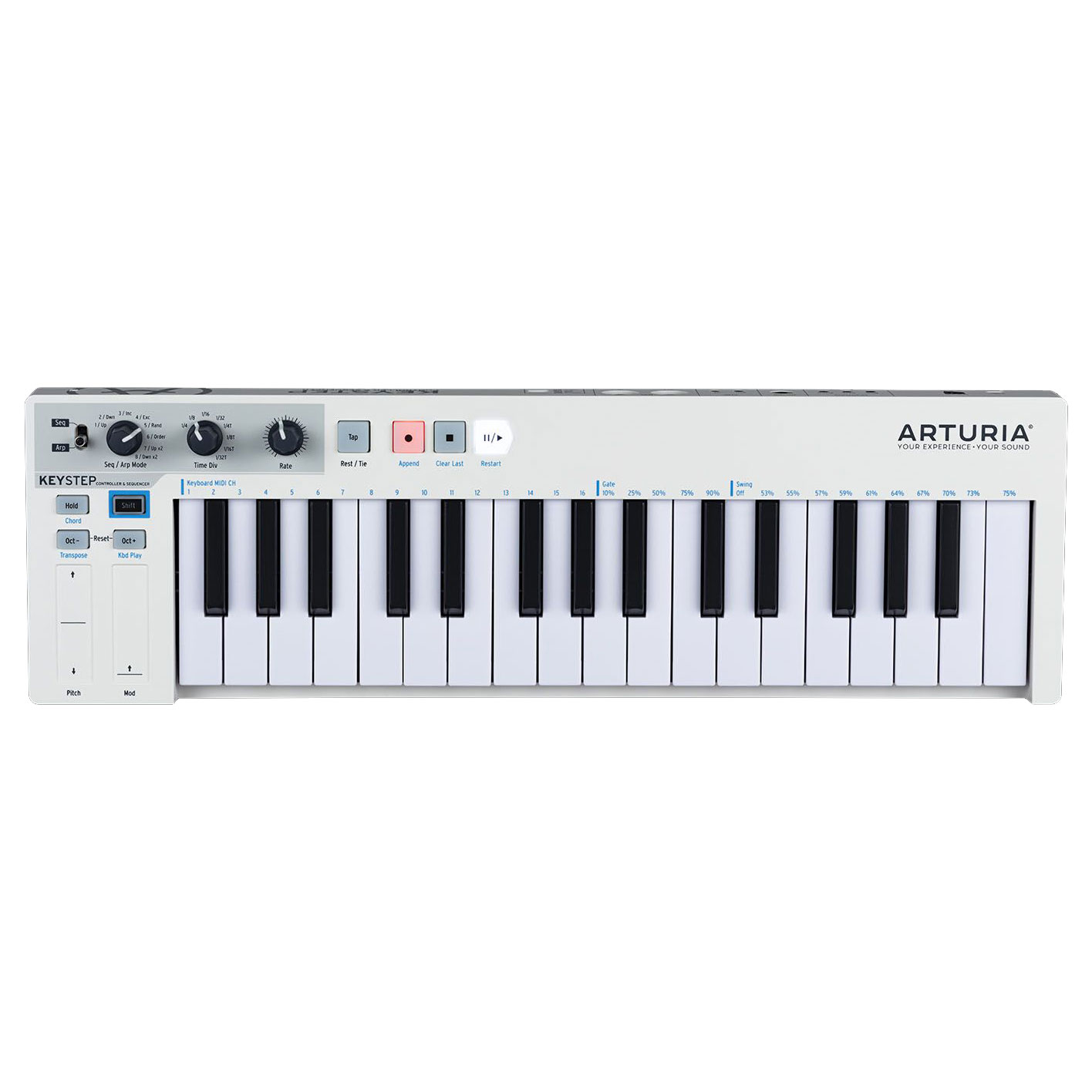

Arturia KeyStep

You need a portable USB MIDI controller but also want a keyboard that provides a musical playing experience. You have some MIDI modules you want to connect but don’t want the footprint of a large keyboard. You have modular and analog gear you want to control via CV/GATEs. You want a step sequencer with polyphonic capa- bility that can sync to your favorite modern and vintage gear. If only a single piece of gear could do all of this...

It’s the touch...

The KeyStep controller does all this and more. We started by designing our own “slim key” keyboard action, balancing the best features of compact mini-keys with the musicality of full-sized keys into this new keybed. The size, velocity and aftertouch of this new design provide the freedom of portability without sacrificing playability. We also designed a new polyphonic step-sequencer with 8 programmable memories that you can recall at the turn of knob. You can choose gate times and swing settings instantly to change the feel of your sequenced performance on the fly. We also included the ability to record, overdub, and transpose your sequences in real time and still play the keyboard live. Add a flexible and fun arpeggiator mode and chord play mode and you are set for hours of musical adventures.

The Possibilities

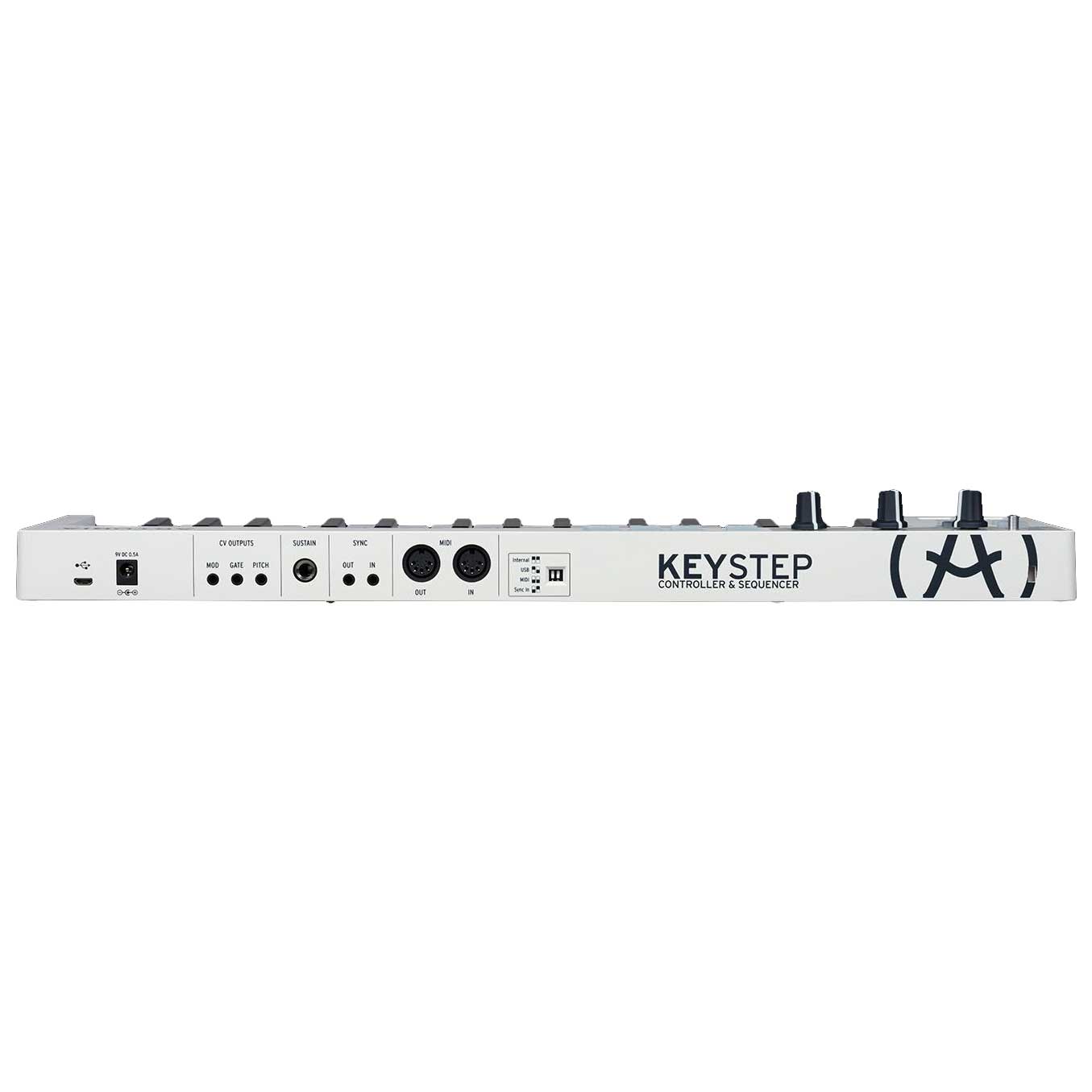

These features alone would make KeyStep the best portable keyboard controller on the market. But we take it further by giving you a wealth of connectivity options: USB MIDI (of course), standard MIDI in and out (check), clock sync and DIN sync jacks (yes!), and CV/GATE outputs, plus a separate, assignable modulation CV output that can be used with the mod wheel, velocity or aftertouch. To say KeyStep is an amazing little controller does not say enough. Keystep is the perfect performance controller in a compact package.

Features

• 32-key keyboard allowing to control
• software instruments via USB
• hardware expanders via USB and MIDI, analog gear via CV
• Slimkey keybed with velocity and aftertouch
• Arpeggiator types: Up, down, inclusive, exclusive, random, note order, double up, double down modes
• Sequencer mode: 8 polyphonic step- sequences with Rest, Tie, and Legato note entry
• Rate control and tap tempo: REC, PLAY, and STOP buttons for performance
• control over the sequencer and arpeggiator
• Sustain HOLD button
• Sustain pedal jack
• Chord play mode
• SHIFT button selection: MIDI channel selection, GATE time, SWING values
• DC jack for standalone operation
• USB MIDI connects to computers and our MCC editor
• MIDI in/out ports
• Sync i/o ports: Supports 1 pulse per step, 2 PPQ (Korg Volca), 24 PPQ DIN
• sync, 48 PPQ DIN sync
• Sync select switches: Internal, USB, MIDI, Clock
• CV/GATE outputs:
• CV supports 1Volt per octave, VoltHz modes, Gate output 5V or 12V for modern or vintage gear support
• CV Velo/Aftertouch/Modwheel output
• Capacitive-touch pitch bend and mod wheels
• Each sequence can have 64 steps, each step can have up to 8 notes
• Low power; can be powered by Apple iPad® (camera connection kit required)
