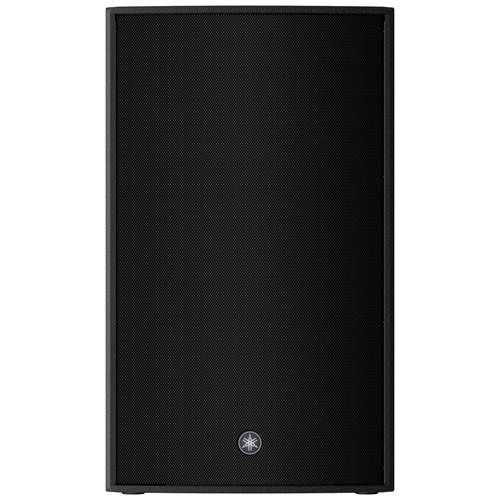

Yamaha CZR15 15 Inch Passive PA Speaker
RRP £1,428.00 Save £409.00
£1,019.00
Available to Order
Place your order today and we will email you when we have an estimated delivery date.Includes 30-Day Exchange & 3-Year Warranty
Frequently Bought Together
Manufacturer's ID: CCZR15
The CZR15 is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure design makes the lightweight CZR15 ideal for range of live performance and installed sound environments - from live bands at outdoor festivals to DJ’s in clubs - these loudspeakers deliver crystal clear, high-quality sound with impressive low frequency performance.
- 2-way loudspeaker with a 2” HF and a 15" LF
- Features Yamaha's own Wide Dispersion CD Waveguide Horn
- High power 800W(PGM) power handling and Bi-amp capable
- Floor monitoring setting enables mirroring configuration
- Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
- Dual-angle pole socket
- Rotatable horn and variety of U-bracket options (UB-DZR15H/V) for rigging allow for very flexible setup and speaker placement
Specification
|
Speaker type |
2-way Speaker, Bass-reflex |
|
|
Frequency range (-10dB) |
Passive: 43 Hz - 20 kHz, Normal (*1): 34 Hz - 20 kHz, FOH (*1): 33 Hz - 20 kHz |
|
|
Coverage area |
H90ﾟ x V50ﾟRotatable Constant Directivity Horn |
|
|
Floor Monitor Angle |
50° Symmetrical |
|
|
Components |
LF |
15" Cone, 3" Voice Coil, Neodymium magnet |
|
HF |
2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet |
|
|
Crossover |
2.0 kHz |
|
|
Power rating |
NOISE |
Passive (EIA 426-A) 400 W, Bi-amp LF (EIA 426-A): 400W, HF (AES): 50W |
|
PGM |
Passive (EIA 426-A) 800 W, Bi-amp LF (EIA 426-A): 800W, HF (AES): 100W |
|
|
PEAK |
Passive (EIA 426-A) 1600 W, Bi-amp LF (EIA 426-A): 1600W, HF (AES): 200W |
|
|
Nominal impedance |
Passive: 8Ω, Bi-amp: LF: 8Ω, HF: 16Ω |
|
|
SPL |
Sensitivity (1W; 1m on axis) |
Passive: 97dB SPL, Bi-amp: LF: 99dB SPL, HF: 108dB SPL |
|
Peak (Calculated) |
Passive: 129 dB SPL, Bi-amp: LF: 131dB SPL, HF: 131dB SPL |
|
|
I/O connectors |
SpeakON NL4MP x 2 (Parallel) |
|
|
Handle |
Aluminium die-cast, Side x2 |
|
|
Pole socket |
Φ35 mm x2 (0° or -7°) |
|
|
Rigging |
M10 x 12 |
|
|
Dimensions |
W |
450 mm (17.7") |
|
H |
761 mm (30.0") (with rubber feet) |
|
|
D |
460 mm (18.1") |
|
|
Net weight |
21.3 kg (47.0 lbs) |
|
|
Options |
Bracket: UB-DZR15H/V, Cover: SPCVR-DZR15 |
|
|
Others |
Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black |
