Zoom L-20 LiveTrak Digital Mixer and Recorder

RRP £1,066.80 Save £177.80

£889.00

In Stock

Order before 1PM for FREE Delivery Tomorrow

Make 3 payments of £296.33 No fees. Learn more

Pay Monthly

  • From £14.23 a month: 9.9% APR
  • Deposit from 0% to 50%
  • Pay over 12, 24 or 36 months
Apply Now

Buy Now, Pay 2022

  • No Deposit
  • Pay nothing for up to 12 months
  • Apply in minutes
Apply Now

FREE Delivery Tomorrow

With 1 hour Delivery slot

Click & Collect

Live Stock levels from all our stores.

Store
Availability
Edinburgh
Collect on Wednesday
Glasgow
In Stock, Collect Today
Newcastle
Collect on Wednesday
Birmingham
Collect on Wednesday
Epsom
Collect on Wednesday
Camden
Collect on Wednesday

Manufacturer's ID: 317412

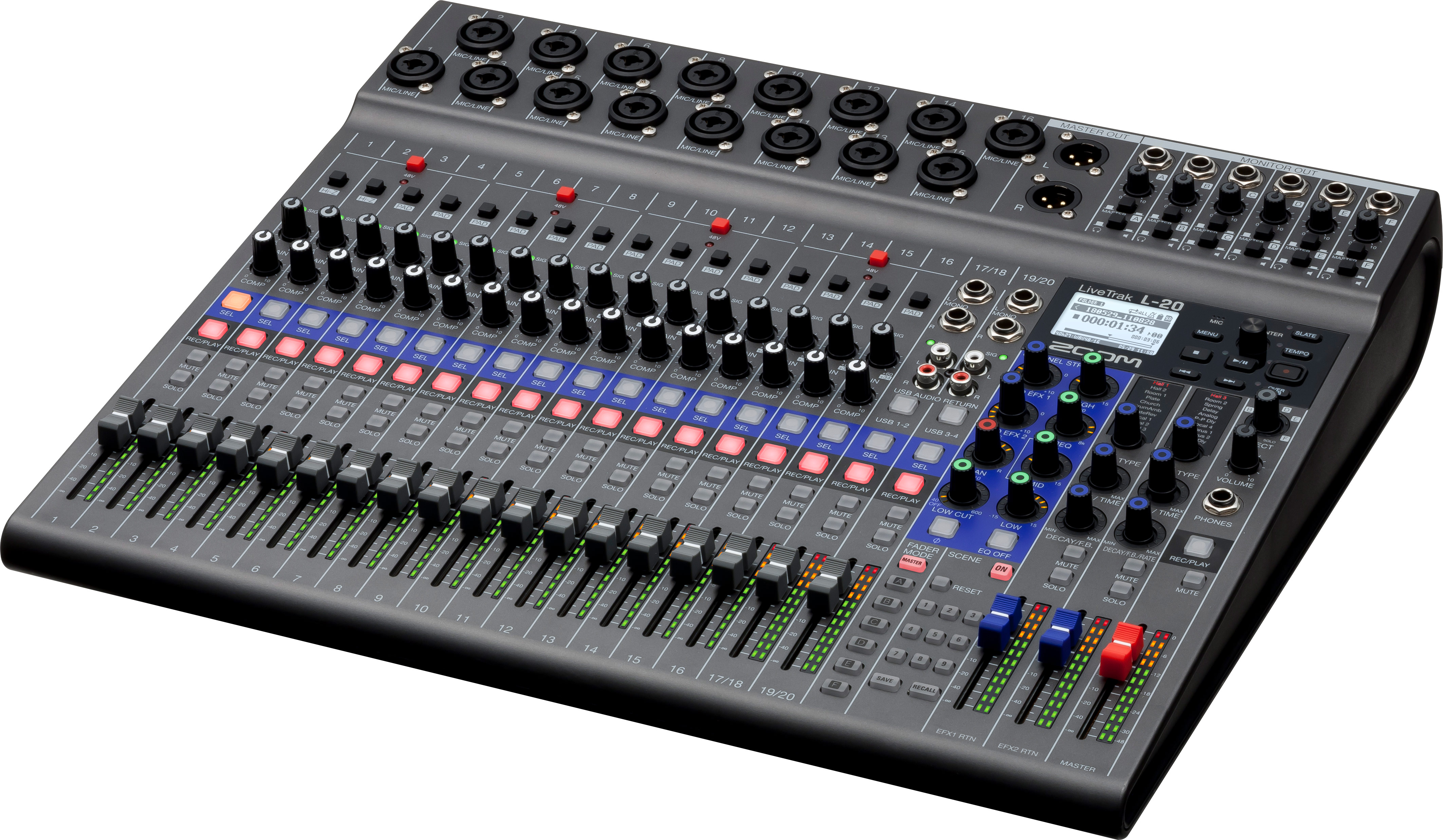

The LiveTrak L-20 is the new digital console offering everything creators need to mix, monitor, and record complex productions. With 20 discrete audio channels and six individual custom monitor mixes, it’s built for bigger, bolder arrangements.

Specification

20 Inputs for Bigger Sound

The LiveTrak L-20 is designed to mix bigger. It features 20 inputs (16 mono mic/line inputs and two stereo inputs), all with independent 3-band mid-parametric EQ. The 16 mono inputs offer stand-alone compressor control.

22 Tracks of Recording

Record 20 discrete channels plus a stereo mix directly to an SD card. The LiveTrak L-20 captures pristine audio in resolutions up to 24-bit/96 kHz.* At -128 dBu EIN with +60 dB maximum input gain, the L-20 is equipped with our quietest and most advanced preamps ever. Mix down finished songs on the L-20 or transfer your discrete tracks to a DAW to perfect later.

*Effects, EQ, overdub, audio interface, and fader modes A-F are not available in 96 kHz.

Create Six Custom Monitor Mixes

With six independent monitor outputs for musicians, each output can have its own custom mix, complete with effects, that can easily be switched from a powerful headphone output, to a balanced line output for stage monitors.

And One for the House

The LiveTrak L-20 features a dedicated 7th output for the FOH engineer. The sound engineer can monitor the main mix and any of the sub mixes, thus adjusting them to the musicians’ satisfaction.

Big Beautiful Interface

Although the LiveTrak L-20 is designed to work as a stand-alone recording and mixing console, it can also be used as a 22-in/4-out USB audio interface. Audio Interface mode lets you route inputs to any DAW or streaming software, even while recording to an SD card. Additionally, audio can be routed from your computer into the L-20 to be mixed with your live performance. Class compliant mode, which enables connection with iOS devices, is supported as well.*

*Apple Lightning to USB Camera Adapter required.

Wireless Mixing

The LiveTrak L-20 offers wireless control* via a free iOS mobile app "L-20 Control" featuring most onboard functions, including Fader Levels and Modes, Scenes, EQ, EFX sends, returns, parameters, and more. You can even manage your Effects Library and Scene Library right from your device. Control it all on either large Monitor Out view with a mini transport, or a mini Monitor Out view with expanded Transport controls.

* Zoom Bluetooth adapter (ex. BTA-1) required.

Communication at up to 10 meters is possible in an unobstructed indoor space with BTA-1 units.

  • 20 discrete channels (16 mono plus 2 stereo) with XLR or ¼-inch connectivity
  • 22-track simultaneous recording, 20-track playback
  • 22-in/4-out USB audio interface connectivity
  • Records up to 24bit/96kHz audio to SD card
  • 48V phantom power
  • Hi-Z connectivity (channels 1-2)
  • 26dB pad (channels 3-16)
  • Built-in compression control (Channels 1-16)
  • Solo buttons for individual channels
  • Variable frequency low-cut control
  • Main outputs plus 6 customizable monitor outputs
  • Dedicated headphone output for sound engineer
  • Scene saving function, up to 9 scenes saved at a time
  • 20 built-in chorus, delay and reverb effects with adjustable parameters
  • Two effect busses
  • Built-in slate mic
  • Class-compliant mode (for iOS compatibility)
  • Compatible with Remote Mixer app for iPad
  • Automatic recording starting/stopping capability
  • Pre-record function
  • Import/export projects with USB 2.0 host port
  • Compatible functions for ZOOM FS01 footswitch
  • Automatic power-save function

Included with the L-20

  • LiveTrak L-20
  • AD-19 AC Adapter
  • USB 2.0 Cable
  • Quick Guide

Customer reviews

Overall Rating 5 (2 reviews)

Please see other comments to first question.

Keith M. - 15/2/2021

The Zoom L-20 is an awesome Desk, full of the features that I require for my home Drum Studio. Having owned and used two Zoom R16 Desks up until recently, the upgrade has been a worthy one, with a much more practical layout, and extra features. Also having dedicated Phantom Power on board for all channels, as well as an invert signal, and hi/lo pass available, 96/24 WAV recording, and very quiet preamps, make this a great Desk.
