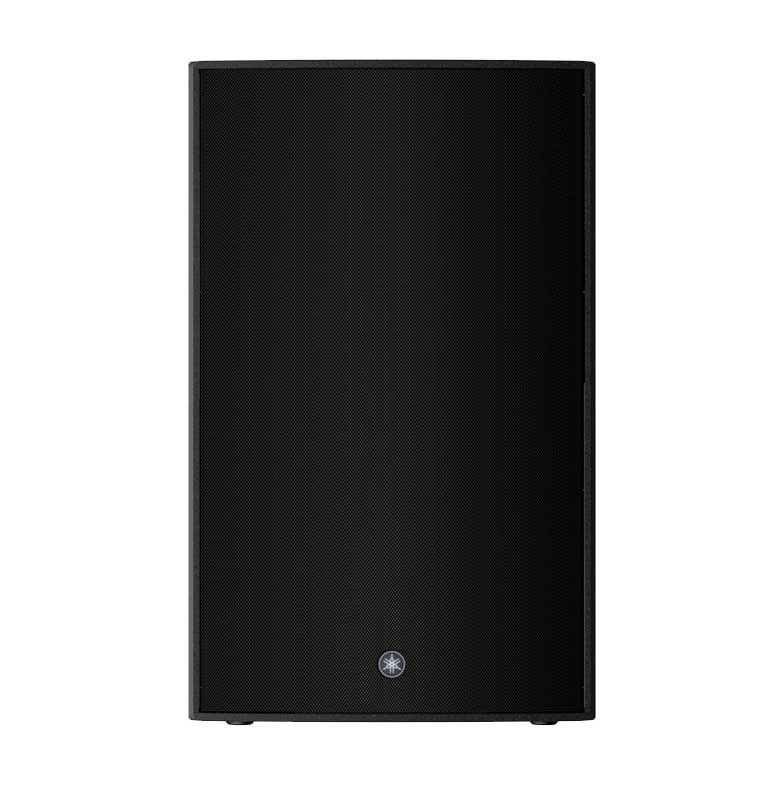

Yamaha DZR315-D Dante-Equipped Powered PA Speaker (Ex-Demo) #21EFCN01004
Image Gallery - Up close and personal with the #21EFCN01004
RRP £2,696.40 Save £1,297.40
£1,399.00
In Stock
Order before 1PM for FREE Delivery Tomorrow
Includes 30-Day Exchange & 3-Year Warranty
Manufacturer's ID: CDZR315DUK
The DZR315-D is a Dante-equipped three-way bi-amped powered loudspeaker and is the most powerful model in the DZR Series producing a maximum 143dB SPL with supreme clarity. Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency sound reproduction—the DZR315 delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design. Ideal for use in a front of house main PA, it also includes integrated M10 rigging points for suspended applications.
- 3-way powered loudspeaker with a 2” HF, an 8 ” MF and a 15" LF
- Maximum 143dB SPL and 31Hz-20kHz frequency range is ideal for FOH main PA
- High power 2000W Class-D amplifier module
- 96kHz DSP and FIR filter for true high-resolution sound with super low latency
- Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
- Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- D-Contour and highly reliable protection circuits
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
Condition Report
Unit show light signs of use, comes with original packaging.
Specification
|
Speaker type |
|
2-way, Bi-amped Powered Speaker, Bass-reflex |
|
Frequency range (-10dB) |
|
34Hz - 20kHz |
|
Coverage area |
|
H90ﾟ x V50ﾟ(Rotatable) |
|
Components |
LF |
15" Cone, 3" Voice Coil, Neodymium magnet |
|
MF |
- |
|
|
HF |
2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet |
|
|
Crossover |
|
1.7kHz (FIR-X) |
|
Sampling frequency rate |
Internal |
96kHz and FIR Filter |
|
A/D D/A Converters |
|
96kHz AD/DA |
|
Maximum output level (1m; on axis) |
|
139dB SPL *1 |
|
SRC |
|
Yes |
|
Power rating |
Dynamic |
2000W (LF:1000W, MF/HF: 1000W) *2 |
|
Continuous |
1300W (LF: 920W, MF/HF: 380W) |
|
|
I/O Connectors |
Analog I/O |
Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT |
|
Digital I/O |
Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T |
|
|
Others |
USB2.0 Host 5V 500mA for USB memory DATA storage/load |
|
|
AC |
IEC AC inlet x1 (V-Lock) |
|
|
Amplifier class |
|
Class-D |
|
Cooling |
|
Fan cooling, Variable speeds |
|
Power consumption |
|
45W (Idle), 150W (1/8) |
|
Handle |
|
Aluminium die-cast, Side x2 |
|
Rigging |
|
M10 x12 |
|
Dimensions |
W |
450 mm (17.7") |
|
H |
761 mm (30.0") (with rubber feet) |
|
|
D |
460 mm (18.1") |
|
|
Net weight |
|
25.2kg (55.6lbs) |
|
Others |
|
Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black |
|
Floor Monitor Angle |
|
50° Symmetrical |
|
Pole socket |
|
Φ35 mm x2 (0° or -7°) |
