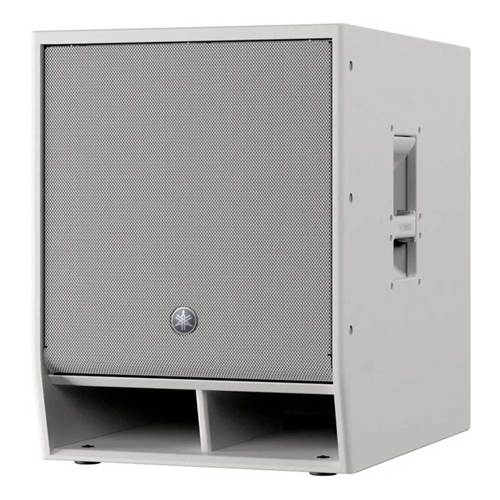

Yamaha DXS18XLF-DW Dante Equipped Powered PA Subwoofer White
RRP £2,751.60 Save £832.60
£1,919.00
Available to Order
Place your order today and we will email you when we have an estimated delivery date.Includes 30-Day Exchange & 3-Year Warranty
Frequently Bought Together
Manufacturer's ID: CDXS18XLFDWUK
Perfectly suited for use with DZR full-range speakers, the DXS18XLF-D is a Dante-equipped powered bass-reflex type subwoofer with extended low frequency, producing a best-in class maximum SPL of 136dB SPL with superb clarity and power.
- Powered 18” subwoofer with 4” Voice Coil
- Maximum 136dB SPL and 30Hz-150Hz frequency range is ideal for today’s sound engineering demands
- High power 1600W Class-D amplifier module
- 96kHz DSP for true high-resolution sound with super low latency
- Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- Equipped with D-XSUB processing and cardioid mode capability
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
Specification
|
Speaker type |
Powered Subwoofer, bass-reflex |
|
|
Frequency range (-10dB) |
30Hz - 150Hz |
|
|
Components |
LF |
18" Cone, 4" Voice Coil, Ferrite magnet |
|
MF |
- |
|
|
HF |
- |
|
|
Sampling frequency rate |
Internal |
96kHz and FIR Filter |
|
A/D D/A Converters |
96kHz AD/DA |
|
|
Maximum output level (1m; on axis) |
136dB SPL *1 |
|
|
SRC |
Yes |
|
|
Power rating |
Dynamic |
1600W *2 |
|
Continuous |
1230W |
|
|
I/O Connectors |
Analog I/O |
Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT |
|
Digital I/O |
Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T |
|
|
Others |
USB2.0 Host 5V 500mA for USB memory DATA storage/load |
|
|
AC |
IEC AC inlet x1 (V-Lock) |
|
|
Amplifier class |
Class-D |
|
|
Cooling |
Fan cooling, Variable speeds |
|
|
Power consumption |
40W (Idle), 180W (1/8) |
|
|
Handle |
Aluminium die-cast, Side x2 |
|
|
Dimensions |
W |
550 mm (21.7") |
|
H |
657 mm (25.9") (with rubber feet) |
|
|
D |
720 mm (28.3") |
|
|
Net weight |
48.9kg (107.8lbs) |
|
|
Others |
Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black |
|
|
Pole socket |
Φ35 mm (depth 80mm), M20 Threaded (depth 25mm) |
