Manufacturer's ID: MIN-MOOG-D-04-06

Originally released in 1970, Minimoog Model D was the world’s first portable synthesizer and served as the archetype for all electronic keyboards that followed. The all-analog instrument gained acclaim for combining the colossal sound of the 1960s Moog modular synthesizers with the accessibility of pre-wired modules—meaning that it could be played instantly and intuitively with no patch cables required. It was quickly embraced by a diverse roster of performers, with artists like Herbie Hancock, Kraftwerk, Rick Wakeman, Sun Ra, Piero Umiliani, Giorgio Moroder, Bernie Worrell, and Gary Numan all shaping unique sounds and forging new musical genres using the instrument.

More than a half-century since its invention, Minimoog Model D is back in production at the Moog factory in Asheville, North Carolina. An exceptional sonic tool and one of the most beloved and iconic synthesizers ever designed, it returns to the hands of synthesists of all kinds and serves as inspiration for the next generation of electronic musicians.

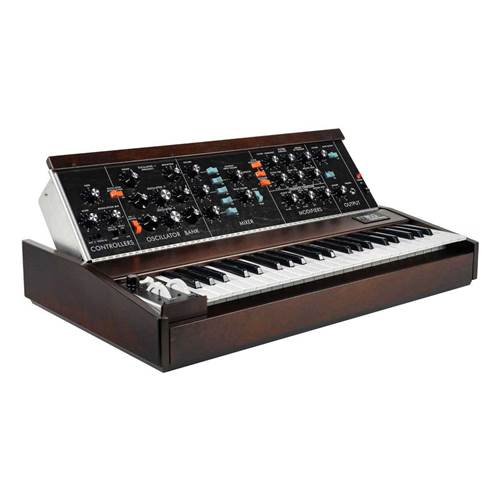

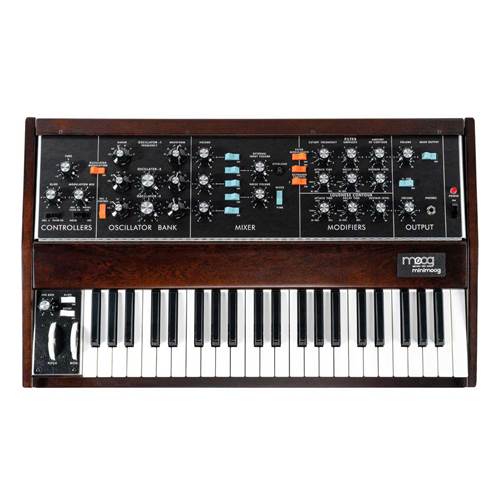

The three-oscillator, monophonic, analog synthesizer is securely housed in a locally sourced Appalachian cherry cabinet and hand-finished aluminum chassis. Sounding as vibrant and deep as ever, its legendary low-pass ladder filter, powerful oscillators, and rich saturating mixer retain the exact component placement and through-hole design of a 1970s-era Minimoog Model D.

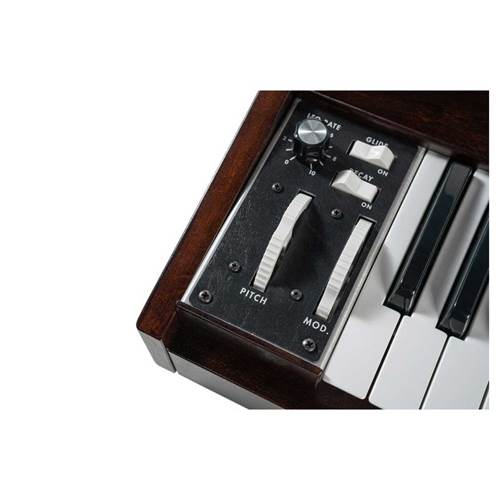

While no changes have been made to the original sound engine or audio signal path, the 2022 Minimoog Model D includes a series of popular functional modifications that expand this legendary instrument’s sonic capabilities. These modifications include a dedicated analog LFO with triangle and square waveshapes, a premium Fatar keybed with velocity and after pressure available via top panel CV jacks with onboard trimpots, MIDI integration, and a mixer feedback modification which allows the Minimoog Model D to overdrive and scream with the turn of a knob. And, for the first time in its history, the Minimoog Model D now features a spring-loaded pitch wheel with center deadband, allowing for improved playability and wild performance flourishes. This newest edition also includes updates to the MIDI functionality, allowing for improved modern studio integration.

Specification

Number of Keys 44
Keyboard Range F0 to C4
Keyboard Action Synthesizer (Spring)
Note Priority (Low, High, Last): User Selectable
Sound Sources 3x Oscillators, Noise Generator and External Audio Input
Oscillator Frequency Range 0.1 to 20 kHz (In Six Overlapping Ranges)
Oscillator Stability (short term) > 0.25 %
Oscillator Waveforms Triangle, Triangle-Sawtooth (Oscillator–1, Oscillator–2), Reverse Sawtooth (Oscillator–3), Sawtooth, Rectangle, Wide Pulse and Narrow Pulse
Noise Generator White and Pink
LFO Rate 0.05Hz to 200Hz
LFO Waveform Triangle (Knob Down); Square (Knob Up)
External Modulation Input Impedance 1Meg Ohms
External Modulation Input Range +10 millivolts to +2 volts

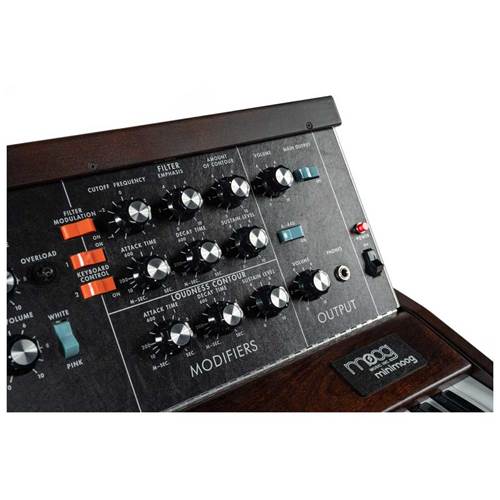

Filter Type Voltage Controlled Low Pass (Ladder Filter)
Filter Frequency Range 10 Hz to 20 kHz
Filter Slope 24 dB per Octave
Filter Keyboard Tracking ⅓, ⅔, 1:1
Contour Attack Time 1 Millisecond to 10 Seconds
Contour Decay Time 4 Milliseconds to >35 Seconds
Contour Sustain Level 0 to 100% of Contour peak
Filter Contour Width 0 to 4 Octaves
Voltage Controlled Amplifier Loudness Contour Dynamic Range 80 dB
External Audio Input Voltage +10 millivolts (min); +10 volt (max.)
External Audio Input Nominal Impedance 1000K Ohms
High Audio Output Typical Voltage: 0.5 volts / Maximum Voltage: 4.2 volts (peak-to-peak)
High Audio Output Nominal Impedance 3K Ohms
Low Audio Output (30 dB below High level): Typical Voltage: 15 millivolts
Low Audio Output Nominal Impedance 1K Ohms
Headphone Output Voltage Maximum 0.3 volts
Headphone Output Impedance 8 Ohms
Glide Rate 1 millisecond to 10 seconds
Pitch Bend Range (+/-) 7 semitones (minimum)
After Pressure CV Output 0 to +5 volts with user adjustable trimpot
Pitch CV Output -3 volts to +7 volts (C=0 volts)
Gate Output 0 to +5 Volts
Velocity Output Selectable 0 to +5 volts or 0 to +10 volts with user adjustable trimpot
Loudness Input 0 to +5 volts; +5 volts = Unity Gain (Works with Moog EP-3 Expression Pedal)
Filter Cutoff Input 1 volt per octave of change (Works with Moog EP-3 Expression Pedal)
Oscillator Pitch Input 1 volt per octave of change (Works with Moog EP-3 Expression Pedal)

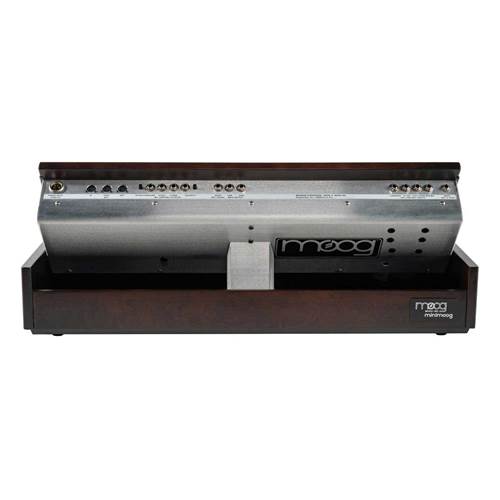

Modulation Source Input Ring=Noise Send; Tip=Modulation Receive (This jack makes a normalled connection with no cable present.)
Trigger Input +5 volt V-Trigger Activates both Contour Generators
Midi Input (5-Pin DIN) Note On & Note #
Midi Output (5-Pin DIN) Note On, Note #; Velocity; Aftertouch, Modwheel, Pitch-bend
Midi Thru Mirror of the MIDI In signal
External Power Supply Self-switching; 100–240 volts; 50/60 Hz; <12 Watt nominal consumption. (Locking XLR-4 connector.)

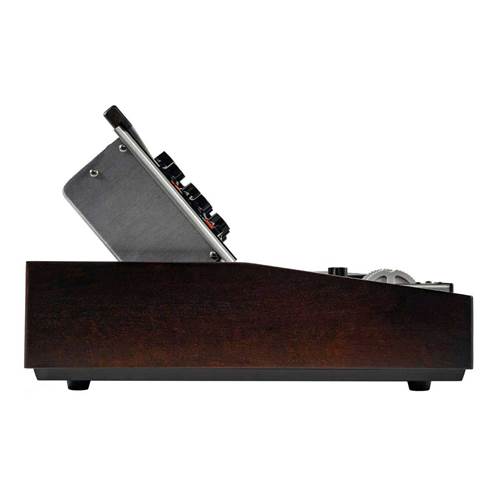

Dimensions (with panel lowered): Width: 28.625” / 727 mm, Depth: 17.125” / 435 mm, Height: 5.75” / 146 mm.
Net Weight 32 lbs. / 14.5 kg.
Storage Temperature 5F to 140F (2C to 60C)
Nominal Operating Temperature 10 – 35 C (50 – 95 F)
Operating Temperature 10 – 50 C (50 – 122 F)
