Product Overview

Industry standard microphone tailored to deliver warm and clear vocal reproduction with analogue transmission. read more

Looking to Spread the Cost?

Buy Now, Pay 2020

  • No Deposit
  • Pay nothing up to 12 months
  • Apply in minutes
View Buy Now Pay Later

Share this product

Frequently Bought Together


Product Overview

Manufacturer's ID: BLX24UK/SM58-K3E

Industry standard microphone tailored to deliver warm and clear vocal reproduction with analogue transmission.

Specification

  • General Specifications
    • Operating Range: 91 m ( line of sight - actual range depends on RF signal absorption, reflection and interference)
    • Available Frequencies: Between 524–865 MHz (available frequencies depend on applicable regulations in country where system used)
    • Audio Range: 50–15,000 Hz (dependent on microphone type)
    • Transmitter RF Output Power: 10 mW, typical (varies by region)
    • Audio Output Connector: XLR and 1/4" (6.3 mm) unbalanced Maximum Output Level: -27 dBV (XLR, mic level), -13 dBV (1/4")
    • Battery Life: Up to 14 hours
    • Dynamic Range: 100 dB A-weighted
    • System Distortion: 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
    • Operating Temperature Range: -18°C (0°F) – +50°C (122°F)
    • Power Requirements: BLX1, BLX2: 2 AA alkaline or rechargeable batteries
    • BLX4: 12–18 V DC at 150 mA, supplied by external power supply
  • Component Specifications:

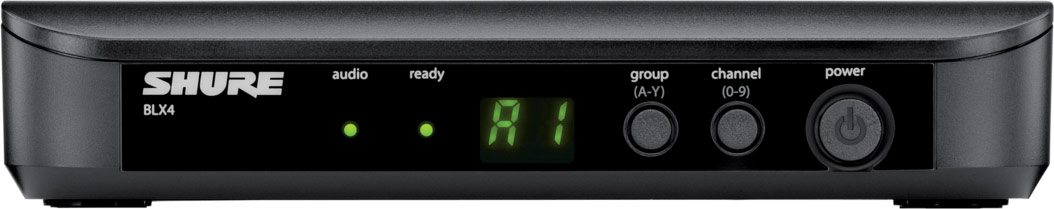

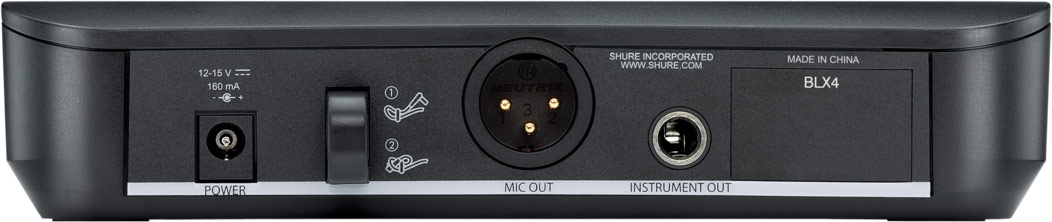

    • BLX4 Receiver
      • Output Impedance:
      • - XLR connector 200 O
      • - 6.35 mm (1/4") connector: 50 O
      • Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone:
      • - XLR connector –27 dBV (into 100 kO load)
      • - 6.35 mm (1/4") connector –13 dBV (into 100 kO load)
      • RF Sensitivity: 105 dBm for 12 dB SINAD, typical
      • Image Rejection: >50 dB, typical
      • Dimensions: 40 mm X 188 mm X 103 mm (H x W x D)
      • Weight: 241 g
      • Housing: Molded ABS
      • Power Requirements: 12–15 V DC @ 160 mA, supplied by external power supply (tip positive)

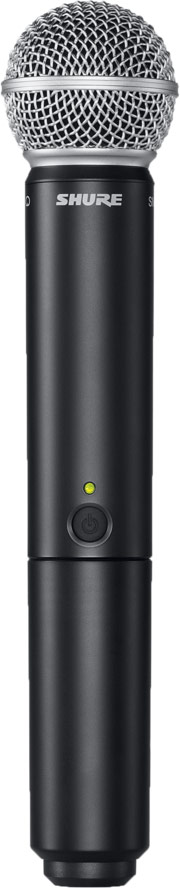

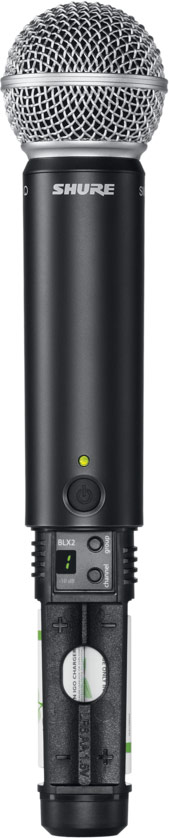

    • BLX2 Handheld Transmitter
      • Audio Input Level
      • - gain 0dB: -20 dBV maximum
      • - gain -10dB: -10 dBV maximum
      • Gain Adjustment Range: 10 dB
      • RF Transmitter Output: 10 mW, typical, varies by region
      • Dimensions: 224 mm X 53 mm dia.
      • Weight: 218 g (without batteries)
      • Housing: Molded ABS
      • Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
      • Battery Life: up to 14 hours (alkaline)
