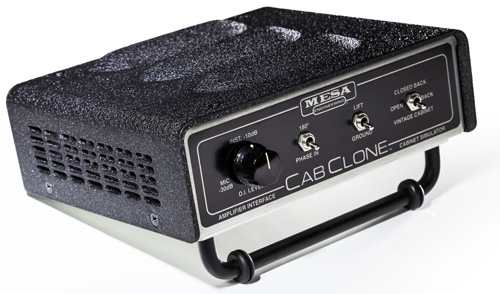

Mesa Boogie Cab Clone 16 Ohm
Manufacturer's ID: AC.CC16
BUILT IN INTERNAL LOAD
Featuring an internal (resistive type) load that can also be defeated, the CABCLONE can be used to capture a direct signal either with or without a live speaker connected to the amplifier. The CABCLONE is designed for amps rated at 100-Watts or less and our standard format is for 8 OHMs. Also available are 4 OHM and 16 OHM versions (again for amps of 100-watts or less) that allow proper impedance matching with other MESA–as well as non-MESA–amplifiers.
D.I. (OUTPUT) LEVEL CONTROL
The Front Panel features an adjustable D.I. (OUTPUT) LEVEL control that accommodates a wide range of destination input requirements ranging from MIC (-30dB) to INSTRUMENT LEVEL (-10dB) to Pro LINE LEVEL (+4DB) and anywhere in between.
A PHASE FLIP switch is provided to allow swapping of the phase 180 degrees when blending the CABCLONE signal with other sources in recording or live environments.
The Front Panel GROUND/LIFT switch allows you to lift the CABCLONE BALANCED DIRECT OUT circuit XLR PIN 1 (GROUND) from Chassis Ground and in many cases remove annoying ground loops that can occur from “grounded” devices that have their own different ground reference when interfacing to consoles.
OPEN BACK, CLOSED BACK OR VINTAGE CABINET OPTIONS
The upper CLOSED BACK position scoops the midrange and also allows more of the upper harmonic region through, simulating the response of a vintage-era British 4x12 cabinet loaded with 30-watt speakers.
The center OPEN BACK position takes the lid off a bit so the upper harmonics can shine through and provide a more open, three-dimensional sound with accentuated top end. This position works well for clean work and overdriven rhythm applications where a brighter, “faster” response is in order. The lower VINTAGE CABINET position is the darkest, most compressed choice and offers the best response for single note soloing, especially when higher gain sounds are in use.
Starting from the far left of the Rear Panel we have the INPUT and this ¼” jack is where you will connect the SPEAKER OUTPUT of your amplifier. The Standard 8 Ohm CABCLONE accepts and will work with almost any impedance load. However, for the best Tonal results and to avoid damage to your amplifier’s output transformer from an impedance mismatch, it is always best to match the amplifier’s Output Impedance to a CABCLONE wired for that same impedance.
THRU (FOR SIMULTANEOUS LIVE SPEAKER MONITORING)
Next we have the THRU jack and this provides the option of having a live speaker on your amplifier while taking the DIRECT OUT signal to your console and using the CABCLONE Direct circuitry for capturing the sound.
BALANCED DIRECT OUT
In the center of the Rear Panel is the 3-Pin male XLR jack BALANCED DIRECT OUT. Here the microphone cable is connected to your mixing console, preamps or even converters and you are ready to press RECORD in the studio or Rock The House in a live venue. And depending on whether you’ve chosen to connect a live speaker cabinet to the THRU jack or not... Silently and with Great Tone! The signal level here is determined by the setting of the Front Panel D.I. LEVEL Rotary Control and as mentioned earlier, can be set to match almost any input destination’s requirement from -30dB Mic Level all the way up to a +4dB Pro Line Level signal.
1/4" LINE OUT (NON-SIMULATED)
A ¼” LINE OUT has been included to capture the unprocessed (untreated) sound of your amplifier’s Speaker Output for various applications ranging from creating a Slave signal for additional power on amps that don’t incorporate that feature, to a Direct feed to a Console/Recorder. This signal is hardwired for the Pro LINE level +4dB signal strength and is not affected by the setting of the Front Panel D.I. LEVEL Control.
And last but definitely not least, we’ve included one of the best features of all on the CABCLONE... the HEADPHONES Output. This jack allows you to enjoy the sonic shaping and great feel of the CABCLONE’s DIRECT BALANCED OUT through a set of quality headphones for personal entertainment with your favorite amplifier.
