Shure GLXD16+UK-Z4 Wireless Guitar Pedal System

Was £499.00 Save £33.00

£466.00

In Stock

6 Available

Order before 4PM for Delivery Tomorrow

Includes Extended Exchange & 3-Year Warranty

We're the first and only UK guitar retailer to offer a 3-year warranty & extended Christmas Exchange as standard.
Buy now and exchange until 31st January 2025

Buy Now, Pay 2025

  • No Deposit
  • Pay nothing for up to 12 months
  • Apply in minutes
Apply Now

Delivery Tomorrow

With 1 hour Delivery slot

Click & Collect

Live Stock levels from all our stores.

Store
Availability
Edinburgh
In Stock, Collect Today
Glasgow
In Stock, Collect Today
Newcastle
In Stock, Collect Today
Birmingham
In Stock, Collect Today
Epsom
Collect on Tuesday
Camden
In Stock, Collect Today

Frequently Bought Together


Total Price: £

Manufacturer's ID: GLXD16+UK-Z4

GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to go wireless with confidence, and without complexity. Every aspect of its operation is managed automatically and with total reliability, allowing you to focus on your performance. With new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth while also intelligently avoiding interference for reliable, dropout-free audio. Featuring smart rechargeability with up to 12 hours of runtime (improved from prior generation GLX-D), the included lithium-ion battery can be charged multiple ways and offers quick charge capabilities.

Specification

Compatibility With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions
  Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions
System Operating Range Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions
  Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions
Transmit Mode Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
Audio Frequency Response 20 Hz – 20 kHz Note: Dependent on microphone type
Dynamic Range 120 dB, A-weighted
RF Sensitivity -88 dBm, typical
Total Harmonic Distortion 0.07%, typical
RF Output Power 10 mW E.I.R.P. max
Operating Temperature Range -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range.
Storage Temperature Range -29°C (-20°F) to 74°C (165°F)
Polarity Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 6,35 mm output.
Battery Life Up to 12 hours

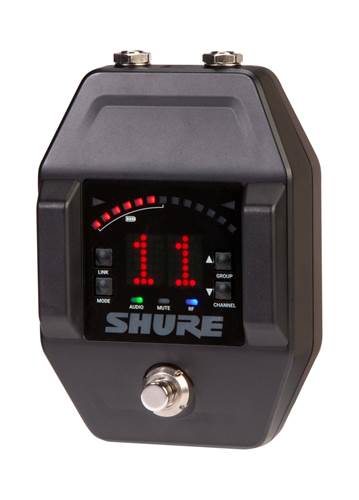

GLXD6 DUAL BAND GUITAR PEDAL RECEIVER
Dimensions 5.4 x 3.7 x 1.89 in. (138 x 95 x 48 mm, H x W x D
Weight 19.75 oz (560 g
Housing Aluminum alloy
Power Requirements 9 V - 15 V, 400mA (efficiency level VI power supply)
Spurious Rejection >35 dB, typical
Gain Adjustment Range −20 to 40 dB in 1 dB steps
Phantom Power Protection Yes
AUDIO OUTPUT 6.35 mm (1/4") output (Impedance balanced)
Impedance 100 Ω (50 Ω, Unbalanced)
Audio Input Modes Tuner or True Bypass

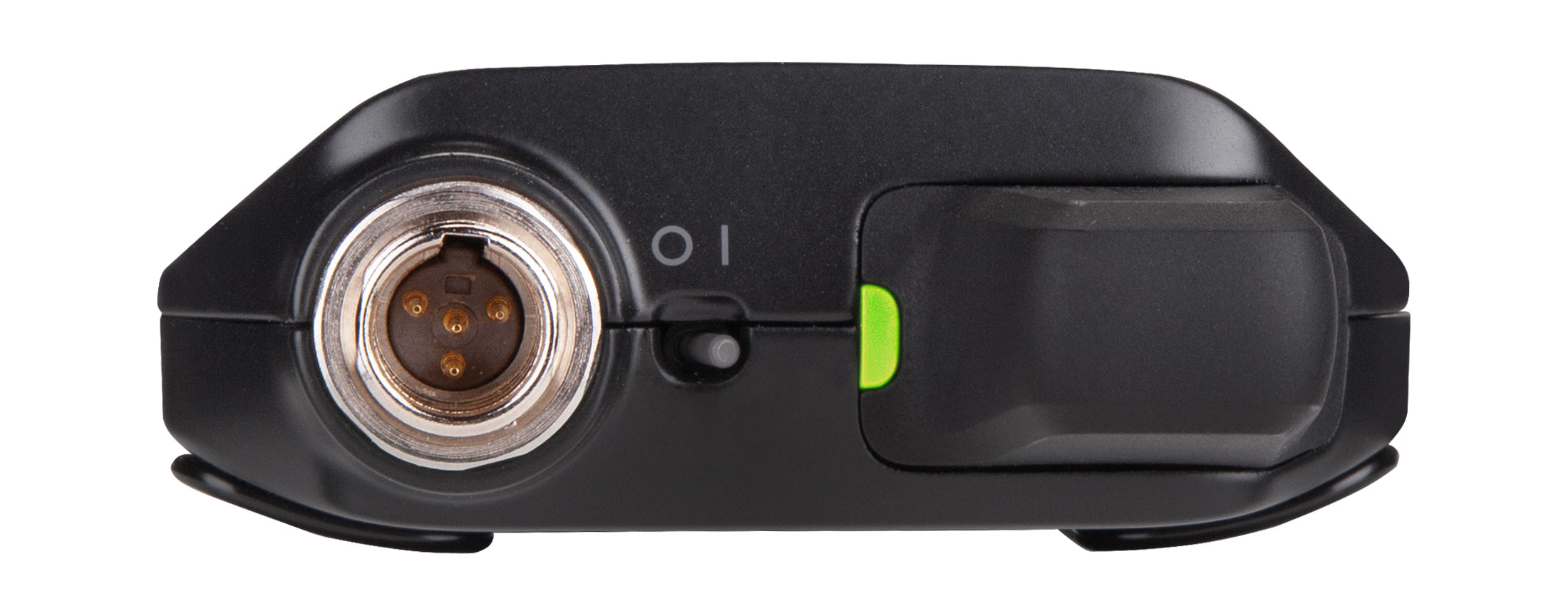

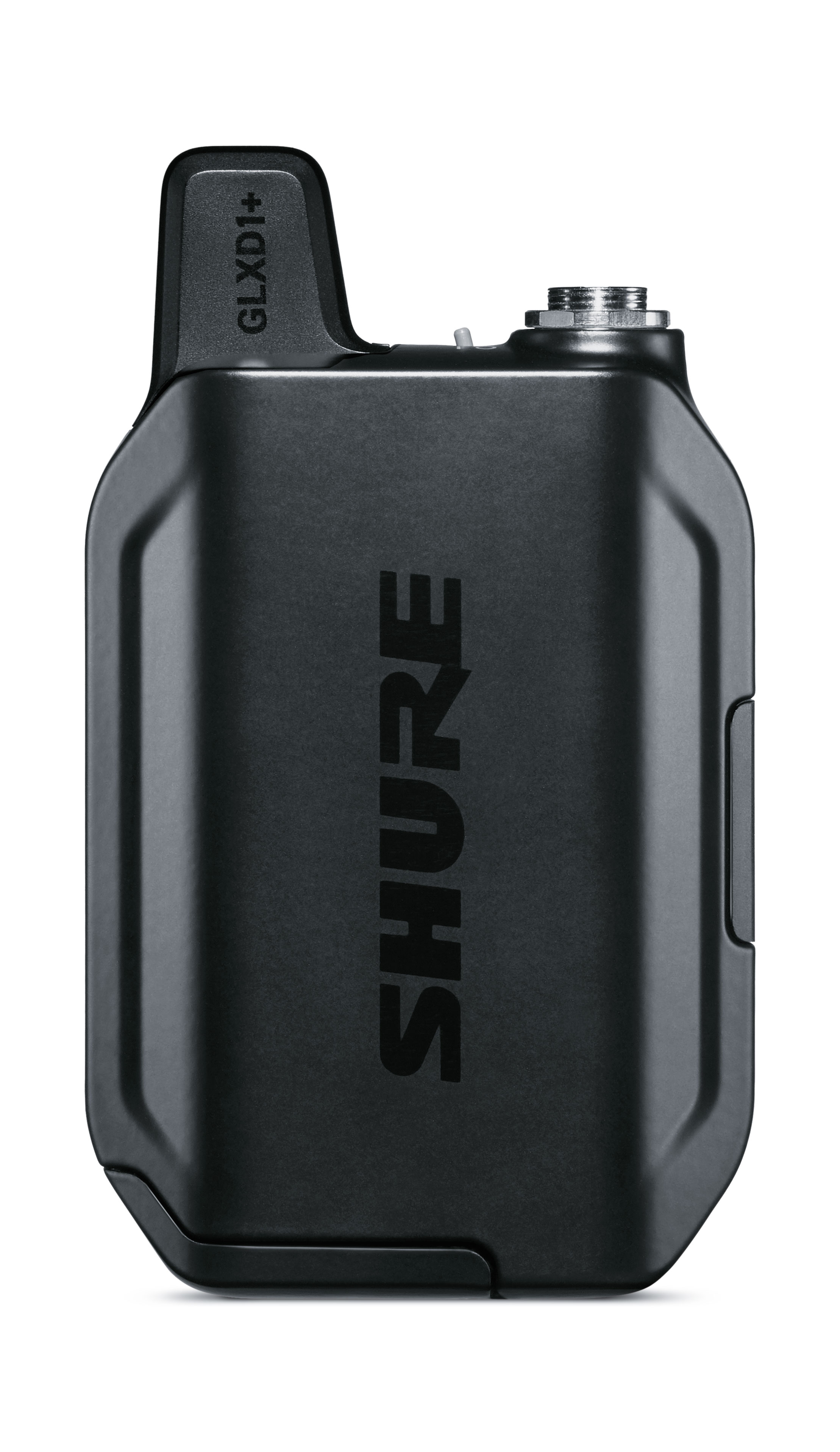

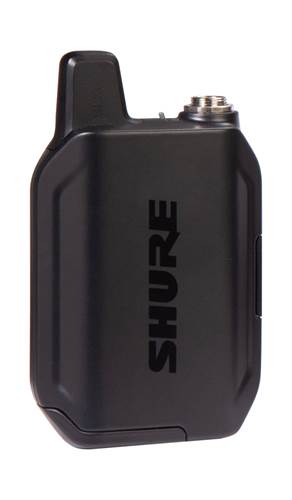

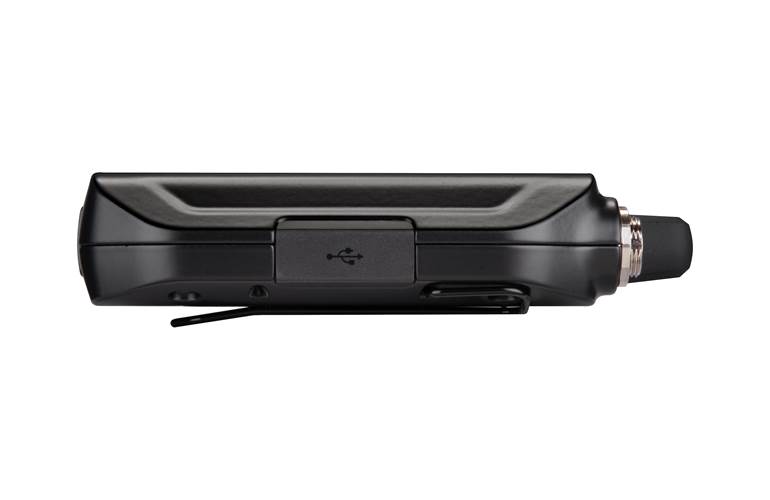

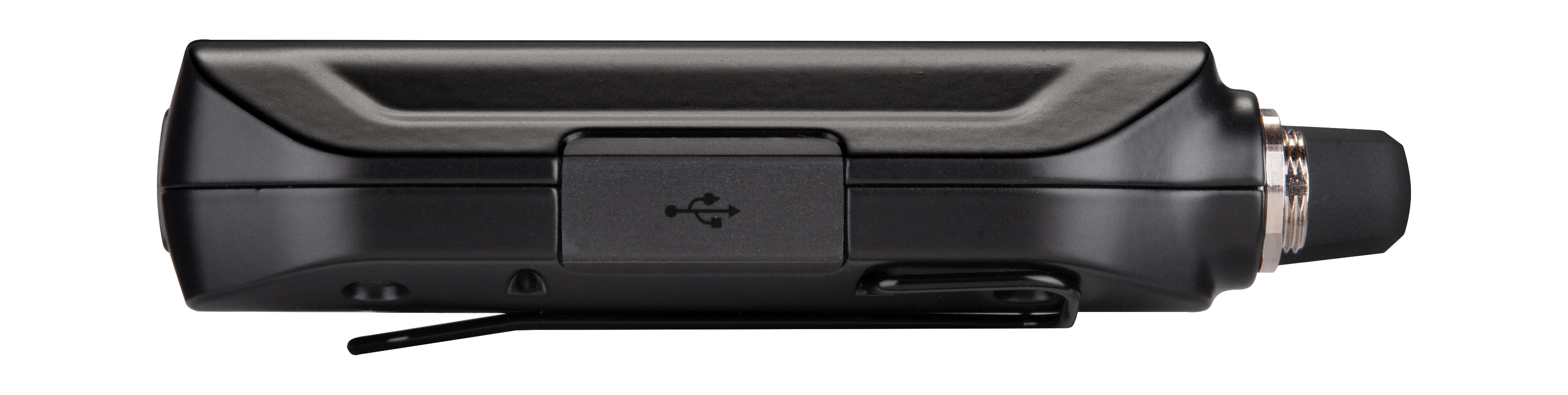

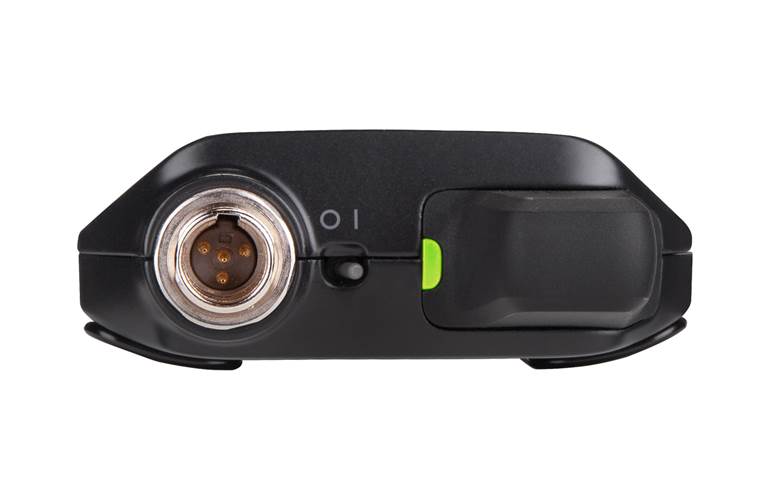

GLXD1+ DUAL BAND BODYPACK TRANSMITTER
Housing Cast Metal, Black Powdercoat
Input Impedance 900 kΩ
RF Output Power 10 mW E.I.R.P. max
TRANSMITTER INPUT
Connector Connector 4-Pin male mini connector (TA4M)
Configuration Unbalanced
Maximum Input Level (1 kHz at 1% THD) +8.4 dBV (7.5 Vp-p)
Antenna Type Dual Band Internal Monopole
Pin Assignments TA4M 1: Ground (cable shield)
  2: + 5 V Bias
  3: Audio
  4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)
Dimensions 4.5 x 2.6 x 1.1 in. (115 x 66.94 x 28.51 mm), H x W x D, without antenna
Weight 5.4 oz (153.1 g), without battery
