Yamaha DXS15 MK3

From an immersive, frenzied set that puts a DJ on the map, to a killer live band showcase with career-defining implications— countless variables, and often pure luck, can factor in to pulling off a memorable, even life-altering performance. Some you can control, others you cannot, but the new DXSmk3 subwoofer takes luck out of the equation when it comes to your bass sound, offering significant improvements in performance, flexibility, and reliability from its renowned predecessor. From the functional, lightweight, yet highly durable cabinet design, to flexible, high-performance DSP features with crucial real-world applications, the DXSmk3 will reliably deliver your bass with serious power and startling precision, ensuring that you’ll never have to question if your bottom end performance can rise to the occasion when you need it most.

Yamaha Proprietary Long-Excursion & High- Durability Speaker Units

All series models come equipped with Yamaha’s own customized, long- excursion speaker units specifically designed for subwoofers. The 18" model features a 4" voice coil, while the 15" and 12" models employ 3" voice coils, ensuring high durability.

Ideal Bandpass Structure

Series enclosures adopt an ideal bandpass structure, significantly reducing unwanted noise even at high outputs. The combination of large- diameter ports and a wide -grille significantly eliminates wind noise, enabling powerful, clear, and deep sub- bass reproduction.

High-Performance Plywood Cabinet with Durable Polyurea Coating

The cabinet exterior employs a robust, scratch-resistant polyurea coating, protecting the enclosure from impacts during transport, installation, and removal. Power and High-Performance DSP That Unlock Performance.

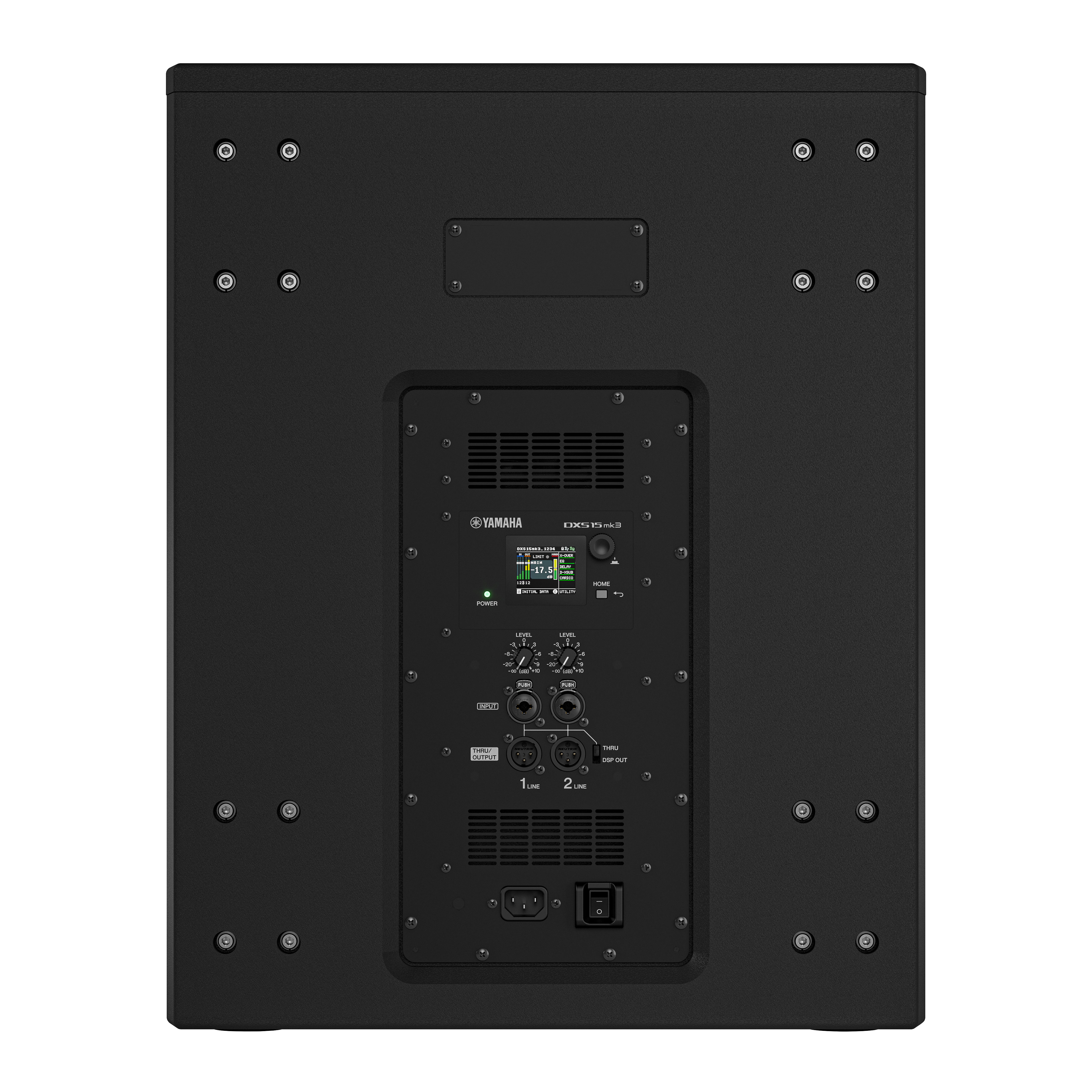

Highly Visible, User- Friendly LCD Panel & Encoder

An LCD panel is mounted on the rear, allowing easy operation of parameters such as preset loading, precise PEQ adjustments, delay, and routing. Up to eight user presets can be stored, and factory presets optimized for combined use with DXRmk3 series loudspeakers can be recalled.

Advanced DSP for Sophisticated Signal Processing

Featuring a 96kHz internal DSP processor, the DXSmk3 series delivers high output performance with exceptional clarity and low latency. It also features an “XTENDED LF” mode for extended low-frequency reproduction.

Newly Developed 2500W Class-D High-Power Amplifier

DXSmk3 series subwoofers are equipped with a newly developed, highly efficient 2500W Class -D high-power amplifier and a newly designed high-efficiency switching power supply ensures smooth and stable operation.

D-XSUB Bass Processing

“D-XSUB” offers DSP presets that allow users to tailor subwoofer characteristics to their specific application. NORMAL mode provides recommended bass balance, while XTENDED LF mode extends the reproduction frequency for genres requiring wider acoustic range, such as classical or orchestral music.

Cardioid Mode

Low frequencies are typically non- directional, resulting in equal sound pressure on both audience and stage sides. With two or more DXSmk3 units, the cardioid mode enables effective bass control, reducing stage-side sound pressure for improved monitoring, while efficiently increasing audience-side output.

“D-Remote” Control App

“D-Remote” is a dedicated application for remote control of DXR/DXSmk3 via iOS/Android devices over Bluetooth. It enables control of all parameters including level, delay, EQ, crossover, FBS, ducker, identification, panel lock, and scene save/ recall. Additionally, it monitors speaker limiting and temperature, displays error alerts, and allows log review. Up to ten devices can be connected simultaneously, with grouping for unified level and mute control.
