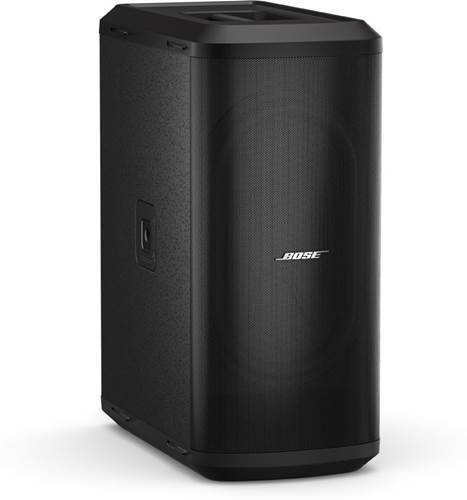

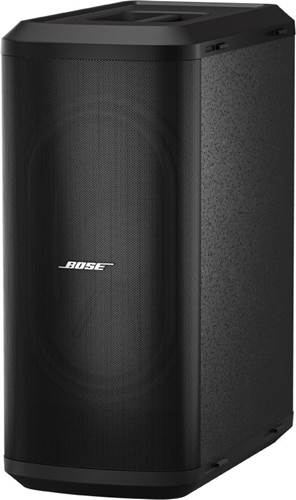

Bose Sub2 Powered Bass Module
In Stock4 Available
Order before 1PM for FREE Delivery Tomorrow
Manufacturer's ID: 840917-2100
What we say:
At A Glance:
The Bose Sub2 is a Powered Bass Module designed to be used as part of a portable PA system. This compact sub can be used upright or on its side and has been optimised for use with L1 Pro and S1 Pro systems. Sub2 features an innovative Racetrack driver which makes it easier to transport and is host to many technological advancements like SubMatch audio transfer, automatic crossover calibration and Cardoid mode.
This larger sibling to the Sub1 is twice as powerful, but still maintains its portable nature, if you're running a full mix and require a full low end, the Sub2 is the speaker for you.
Features We Love:
While most sub speakers are heavy and bulky, the Sub2 is relatively lightweight and portable considering its power. Sub2 can also be used with a Bose speaker pole to support a PA speaker like the Bose S1 Pro.
While using the propriety SubMatch cable with a Bose L1 Pro, the Sub2 can receive power and audio through a single cable and allows for the internal crossover and EQ to automatically calibrate. This ensures the most efficient use of audio is distributed to each speaker for the best possible sound. For PAs where extra bass is required, multiple Sub2's can be stacked to give you a rich punchy sound.
The key feature behind the Sub2's enhanced portability is its custom RaceTrack driver. Its stretched shape allows for Sub2's slender frame without compromising sound quality.
Another great feature of the Sub2 is the cardioid mode, this directs the sound forward and away from the stage. This is ideal for boxy stages and outdoor events where low-frequency build-up can cause major feedback issues.
- Twice as powerful as the Sub1
- High quality sound in a compact speaker
- Easy to transport
- Connects to L1 Pro systems via a single cable
|System Type||Self-powered bass module|
|Frequency Response (–3 dB) 1||37 Hz to 180 Hz|
|Frequency Range (–10 dB)||29 Hz to 250 Hz|
|Nominal Vertical Coverage Pattern||0°|
|Nominal Horizontal Coverage Pattern||Omnidirectional (with –10 dB rear rejection in Cardioid mode)|
|Calculated Maximum SPL @ 1 m, continuous 2||123.8 dB|
|Calculated Maximum SPL @ 1 m, peak 2||129.8 dB|
|Low Frequency||1 × RaceTrack low-frequency driverr 10" × 18"|
|Low Frequency Voice Coil Size||3"|
|Driver Protection||Dynamic limiting|
|Low Frequency Amplifier Channel||1000 W|
|Channel 1 & 2 Input: Audio Type||Combination XLR or 1/4" TRS connector (mic/instrument/line)|
|Channel 1 & 2 Input: Impedance||100 KΩ|
|Channel 1 & 2 Input: Channel Gain||+10 dB to +45 dB; from input to driver, controlled by volume control|
|Channel 1 & 2 Input: Max Input Signal||+24 dBu|
|Channel 1 & 2 Output: Audio Type||XLR connector, line-level, full-frequency bandwidth|
|SubMatch Input: Audio Type||Bose proprietary multi-pin cable|
|SubMatch Thruput: Audio Type||Bose proprietary multi-pin cable|
|LED Indicators||Standby, Phase/Pattern selection, Input EQ selection, Output EQ selection, Signal/Clip Indicator|
|AC Power Input||100–240 VAC (±20%, 50/60 Hz)|
|Input: Electrical Type||IEC, SubMatch|
|Initial turn on inrush current||14.9 A at 120 V; 29.3 A at 230 V|
|Inrush current after AC mains interruption of 5 s||5.8 A at 120 V; 32.0 A at 230 V|
|Dimensions (H × W × D)||694 × 317 × 551 mm (27.3 × 12.5 × 21.7 in)|
|Weight||23.0 kg (50.7 lbs)|
