Yamaha CHR10 Passive PA Speaker
Image & Video Gallery
RRP £519.60 Save £160.60
£359.00
In Stock
2 AvailableOrder before 4PM for Delivery Tomorrow
Includes 30-Day Exchange & 3-Year Warranty
Manufacturer's ID: CCHR10UK
What we say:
At A Glance:

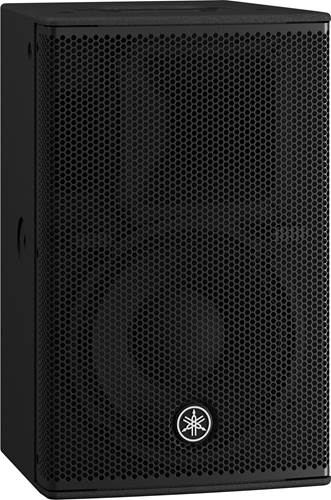

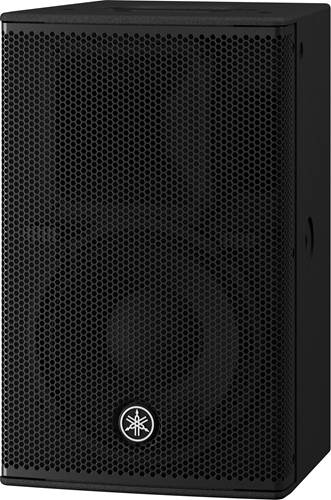

The Yamaha CHR10 is a versatile 10" passive PA speaker suitable for a range of situations. Its lightweight and compact size makes it ideal for use as part of a vocal PA system and also for suspending as part of a fixed installation.
Features We Love:
Custom-Designed Transducers
The proprietary transducers have been designed to work with the speaker's cabinet to offer a pronounced sound with minimal distortion.
Portable
With its compact size and weighing under 14 kilograms, the CHR10 is easy to transport.
Fixed Installation
When used with the optional U-Bracket, the CHR10 can be mounted on a wall or onto a rig in either an upright position or on its side,
Highlights:
- Clear sound with a controlled low end
- Lightweight and portable
- Can be suspended for fixed installation
Specification
| System Type | 2-way Speaker. Bass-reflex | |
| Frequency Range (-10dB) | 55 Hz - 20 kHz | |
| Coverage Angle | H90° x V60° (Rotatable) | |
| Crossover Frequency | 2.5 kHz | |
| Nominal Impedance | 8Ω | |
| Rating Power (A-426 EIA) | ||
| NOISE | 175W | |
| PGM | 350W | |
| MAX | 700W | |
| Sensitivity (1Q, 1m) *1 | 93dB SPL | |
| Maximum SPL (Calculated, 1m) *1 | 122 dB SPL | |

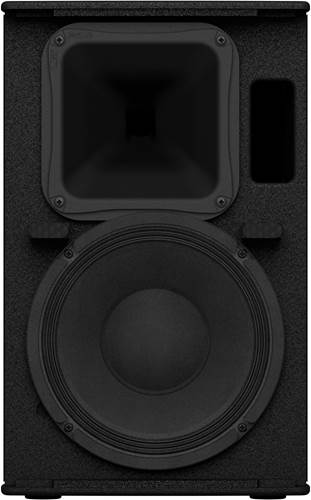

| Transducer | ||
| LF Diameter | 10" Cone | |
| LF Voice Coil | 2" | |
| LF Magnet | Ferrite | |
| HF Diaphragm | 1.4" PET | |
| HF Type | 1" Throat Compression Driver | |
| HF Magnet | Ferrite | |
| Enclosure | ||
| Material, Finish, Colour | Plywood, Durable Polyurea coating, Black | |
| Floor Monitor Angle | - | |
| Dimensions (W x H x D with rubber feet) | 305 x 494 x 300mm | |
| 12.0" x 19.5" x 11.8" | ||
| Weight | 13.7 kg (30.2 lbs) | |
| Handles | Top x1 | |
| Pole Pocket | Φ35 mm | |
| Rigging Points for eyebolts | M10 x2 (Top x2, Rear x1, L:30-50mm) | |
| Connectors | SpeakON NL4MP x 2 (Parallel) |
